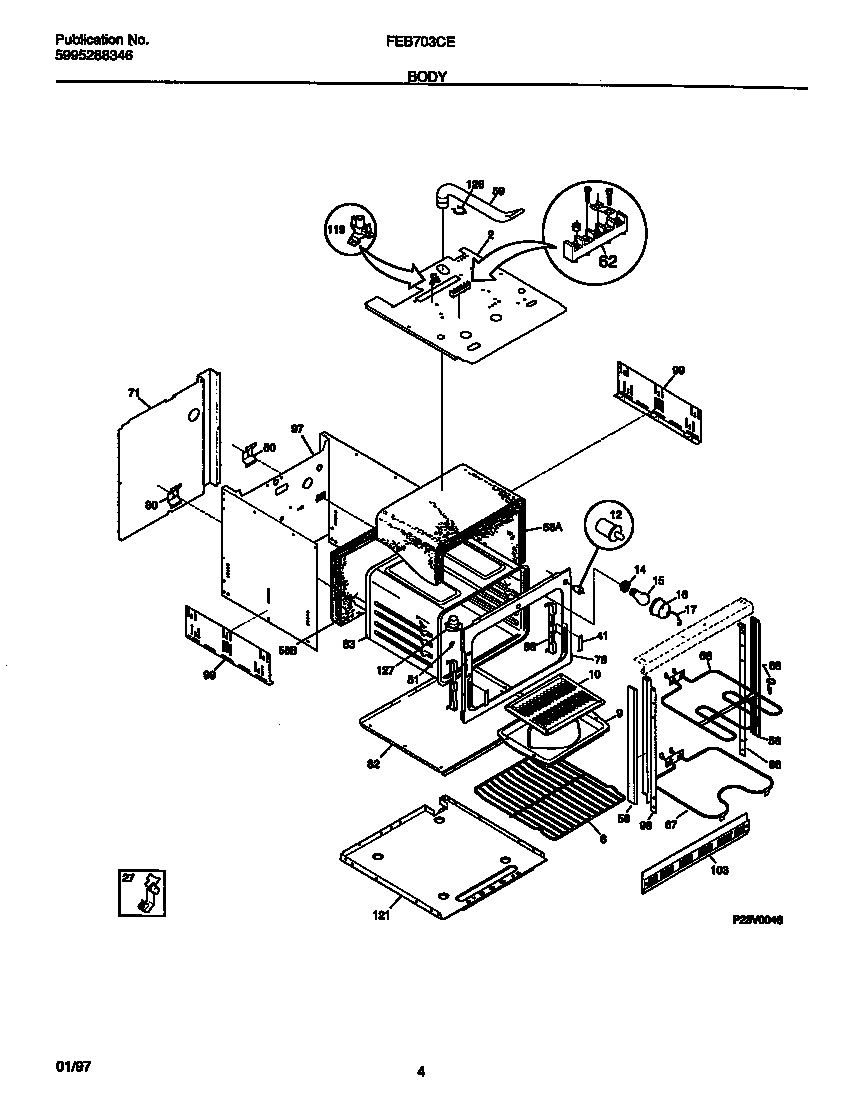

FEB703CEBB 03 – BODY

FEB703CEBB 03 – BODY

Written by

in

FEB703CEBB 03 – BODY

Products

PositionProduct
*08605WCI 5303316981
*08606WCI 5303319292
*0860308002868 Frigidaire 0 Screw Assembly
*08604COVER-CAPILLARY
2WCI 5303300093
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12SWITCH-DOOR
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
56WCI 5303320422
56WCI 5303298951
58INSULATION, OVEN BACK
58INSULATION, OVEN WRAPPER
59WCI 318072507
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
76WCI 318124201
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83WCI 318089509
86WCI 3201631
97WRAPPER
98WCI 5303298952
98WCI 5303298953
99318284201 Frigidaire PANEL
103WCI 318028700
119SWITCH-THERMAL
121WCI 5303304700
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
