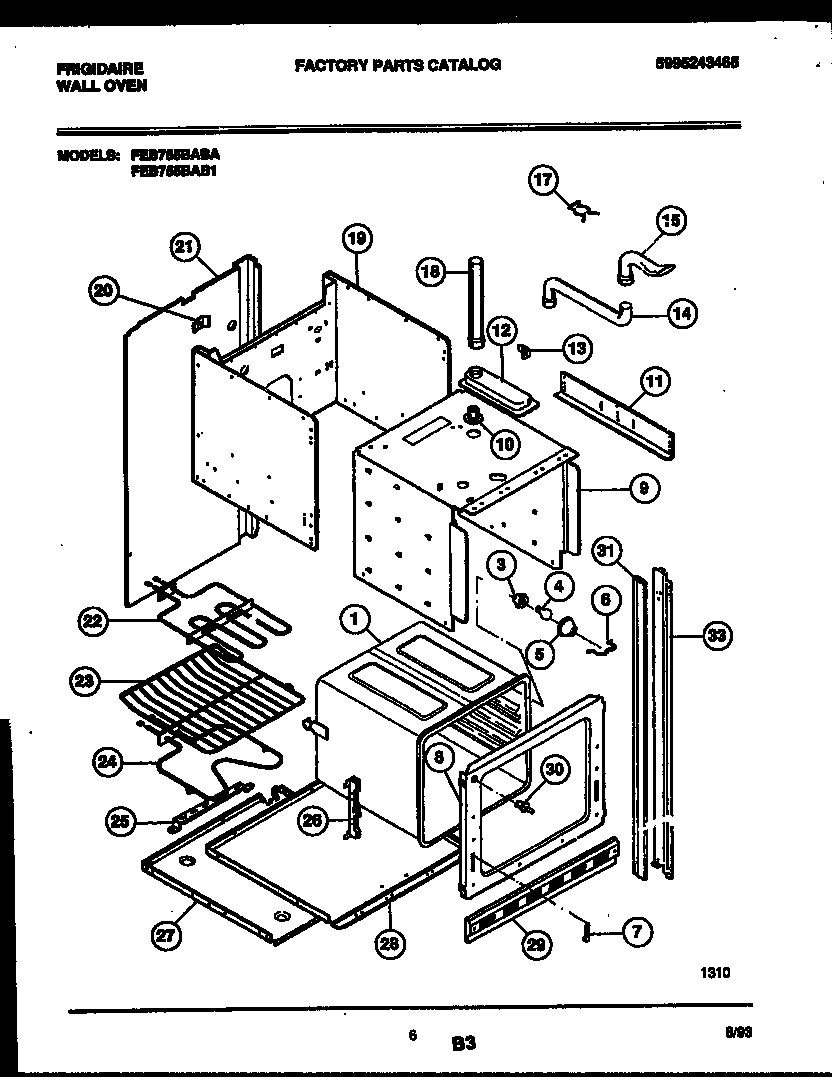

FEB755BAB1 05 – BODY PARTS

FEB755BAB1 05 – BODY PARTS

Written by

in

FEB755BAB1 05 – BODY PARTS

Products

PositionProduct
*82913COVER, OVEN VENT, BLACK
*82913THERMOSTAT BULB CLIP
*82913WCI 5303271040
1WCI 5303300952
3SOCKET-LIGHT/LAMP, OVEN
4316538904 Frigidaire Oven Lamp Light
55304524341 Frigidaire Lens
6WIRE, GLASS RETAINER
7WCI 5303210005
7WCI 3019063
8WCI 5303299859
9WCI 5303299270
10TUBE-OVEN VENT
11318284201 Frigidaire PANEL
12WCI 3016324
13WCI 3016326
14DUCT-VENT PIPE
15WCI 5303300422
17Clip,insulator
18Duct,oven vent ,center
19WCI 3016275
20WCI 3016281
21WCI 3016335
225303016247 Frigidaire Broil Element
23318345216 Frigidaire Oven Rack
24WCI 5303201724
25WCI 3016248
26WCI 3201631
27WCI 3016277
28SHIELD-INSUL BASE
29WCI 5303300095
30318394803 Frigidaire Oven Switch
31TRIM-SIDE, INNER, RH
31ATRIM-SIDE, INNER, LH
33WCI 5303300956
