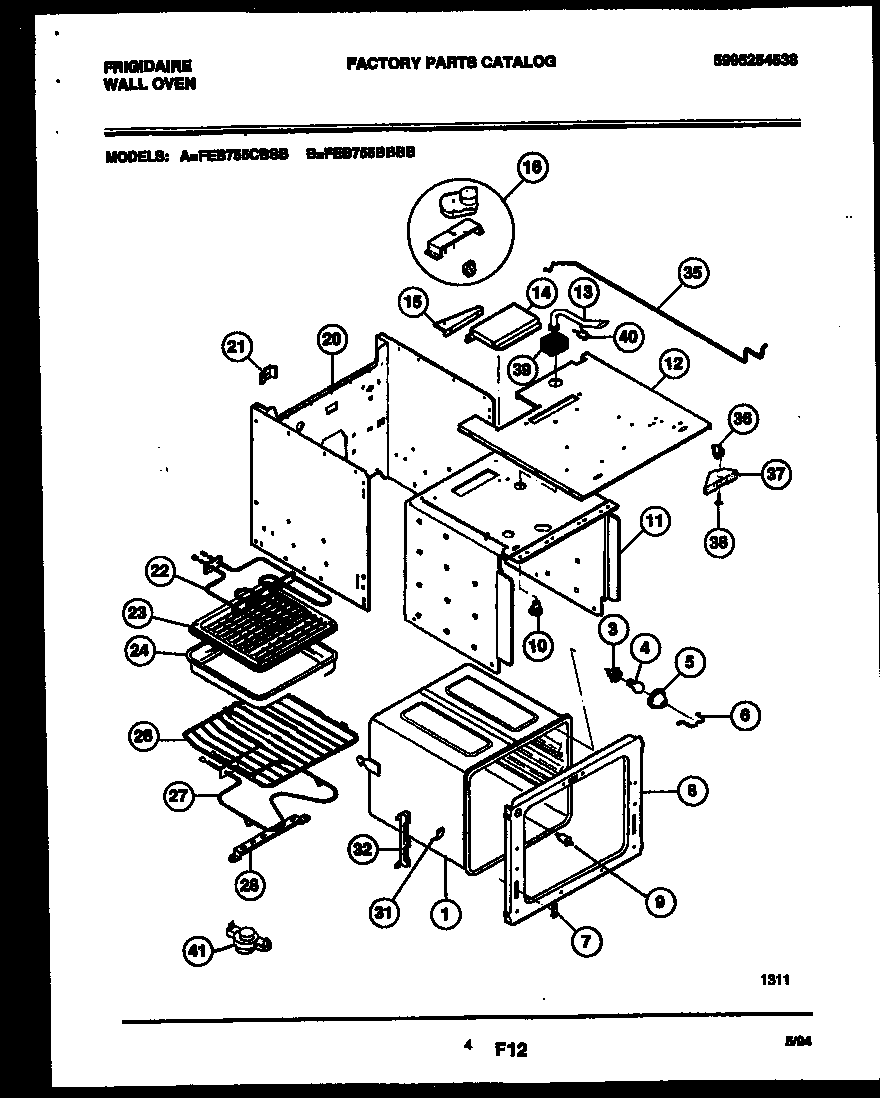

FEB755BBBB 04 – BODY PARTS

Products

Position	Product
*10329	THERMOSTAT BULB CLIP
*10329	INSULATION, OVEN WRAPPER
*10329	INSULATION, OVEN BACK
*10329	INSULATION – BACK (NON-ILLUSTRATED)
1	WCI 5303305022
3	SOCKET-LIGHT/LAMP, OVEN
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 5303299251
9	WCI 5301314211
10	TUBE-OVEN VENT
11	WCI 5303299270
12	WCI 3016249
13	WCI 5303300951
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	LATCH, MOTOR
20	WCI 5303300979
21	WCI 5303301261
22	5303016247 Frigidaire Broil Element
23	WCI 3201920
24	WCI 3201919
26	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
31	WCI 3201632
32	WCI 3201631
35	WCI 3016241
36	LATCH-DOOR
37	WCI 3019069
38	AXLE – HINGE (2)
40	Clip,insulator
41	5303302280 Frigidaire Safety Thermostat
