FEB755BBBD 04 – UPPER BODY

FEB755BBBD 04 – UPPER BODY

Written by

in

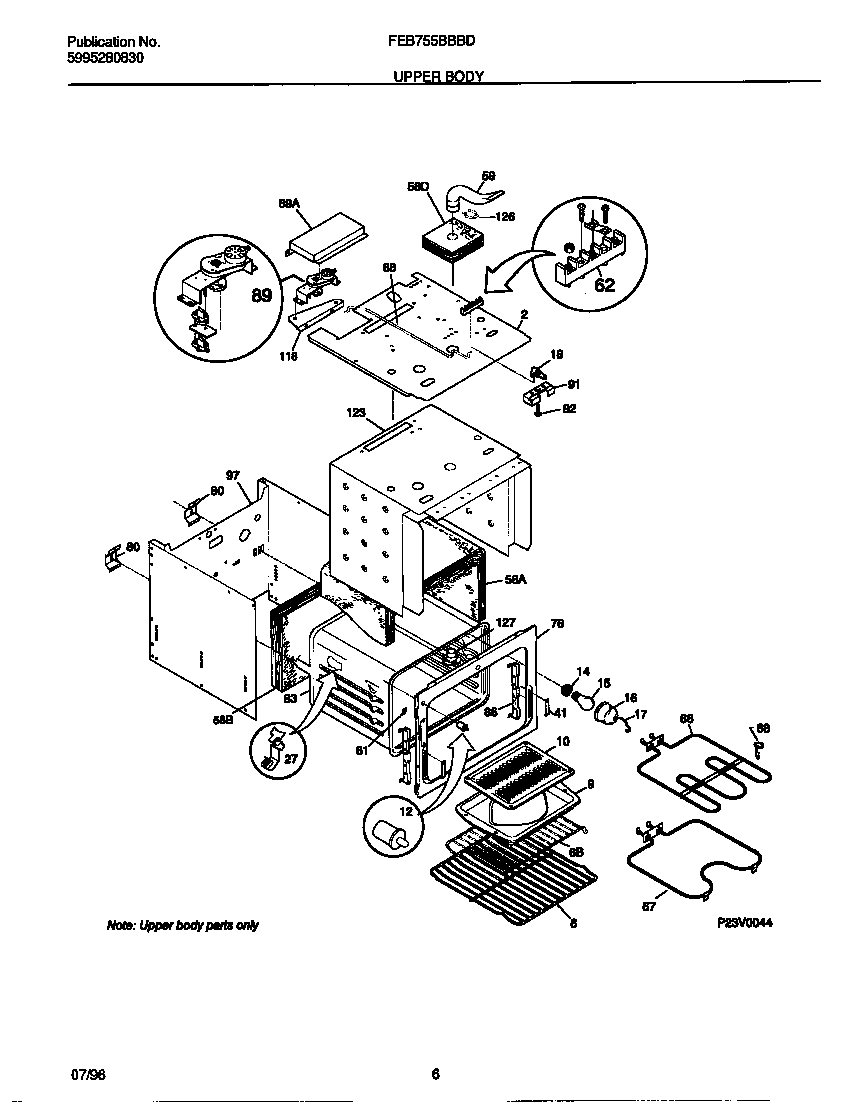

FEB755BBBD 04 – UPPER BODY

Products

PositionProduct
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
58INSULATION, OVEN WRAPPER
58INSULATION-WRAP
58WCI 5303317714
59WCI 5303300951
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
76WCI 318124200
80WCI 5303301261
81WCI 3201632
83WCI 318089504
86WCI 3201631
88WCI 3016241
89WCI 3016296
89LATCH, MOTOR
91WCI 3019069
92AXLE – HINGE (2)
97WCI 318066501
118WCI 5303308461
123WCI 5303299270
126Clip,insulator
127TUBE-OVEN VENT
