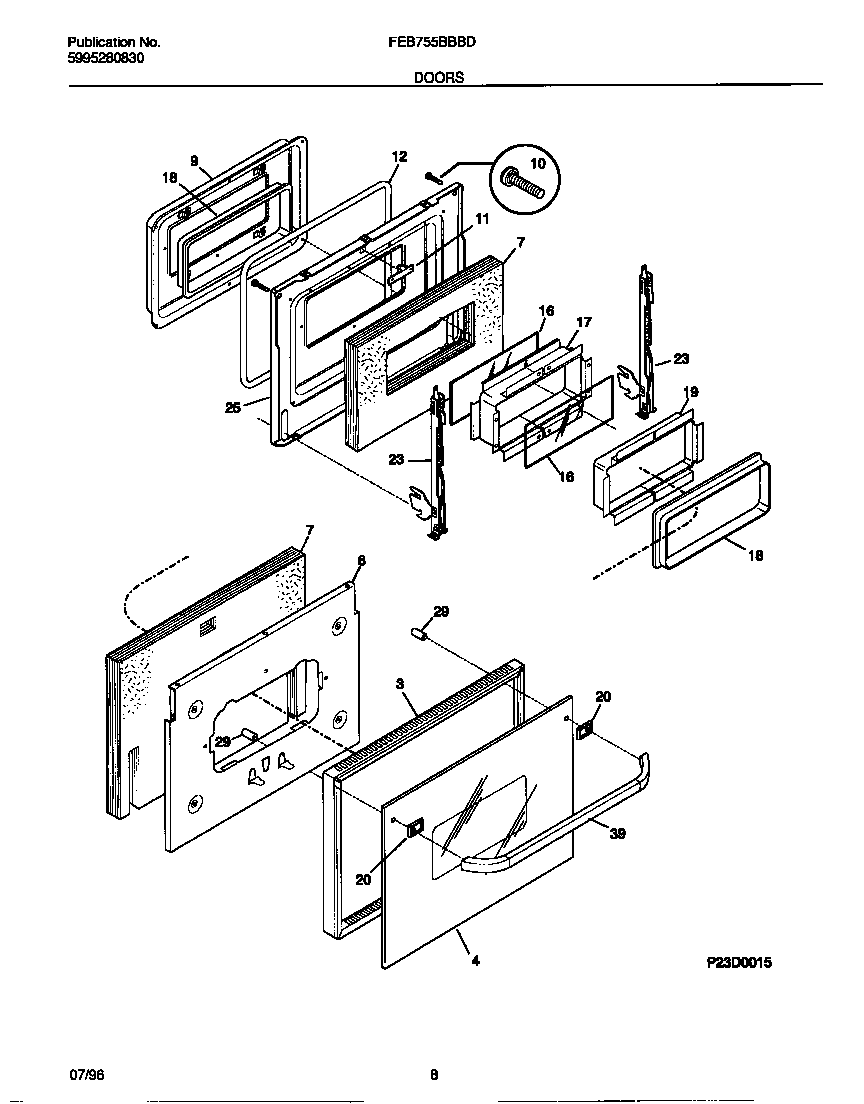

FEB755BBBD 05 – DOORS

FEB755BBBD 05 – DOORS

Written by

in

FEB755BBBD 05 – DOORS

Products

PositionProduct
*25287Plug,button
*25289Foam seal,(3)
*252915303308456 Frigidaire Oven Screw
*252905303307980 Frigidaire Oven Screw
*25288WCI 5303300414
3WCI 318026600
4WCI 5303016258
6WCI 5303210005
7WCI 5303308470
9LINER-OVEN DOOR, LOWER OVEN
9WCI 318048301
10WCI 5303311217
11WCI DK1323556
12WCI 5303316768
12SEAL, DOOR
16GLASS-OVEN DOOR, HEAT BARRIER
16GLASS – BAFFLE (2)
17SPACER-GLASS
17SPACER-GLASS
18SEAL-ROPE
18WCI 3016263
19WCI 5303210006
20WCI 5303300175
23HINGE-OVEN DOOR, LOWER
23WCI 5303018381
25WCI 318038601
29SPACER-HANDLE MTG, (2)
39HANDLE-DOOR, BLACK, OVEN
