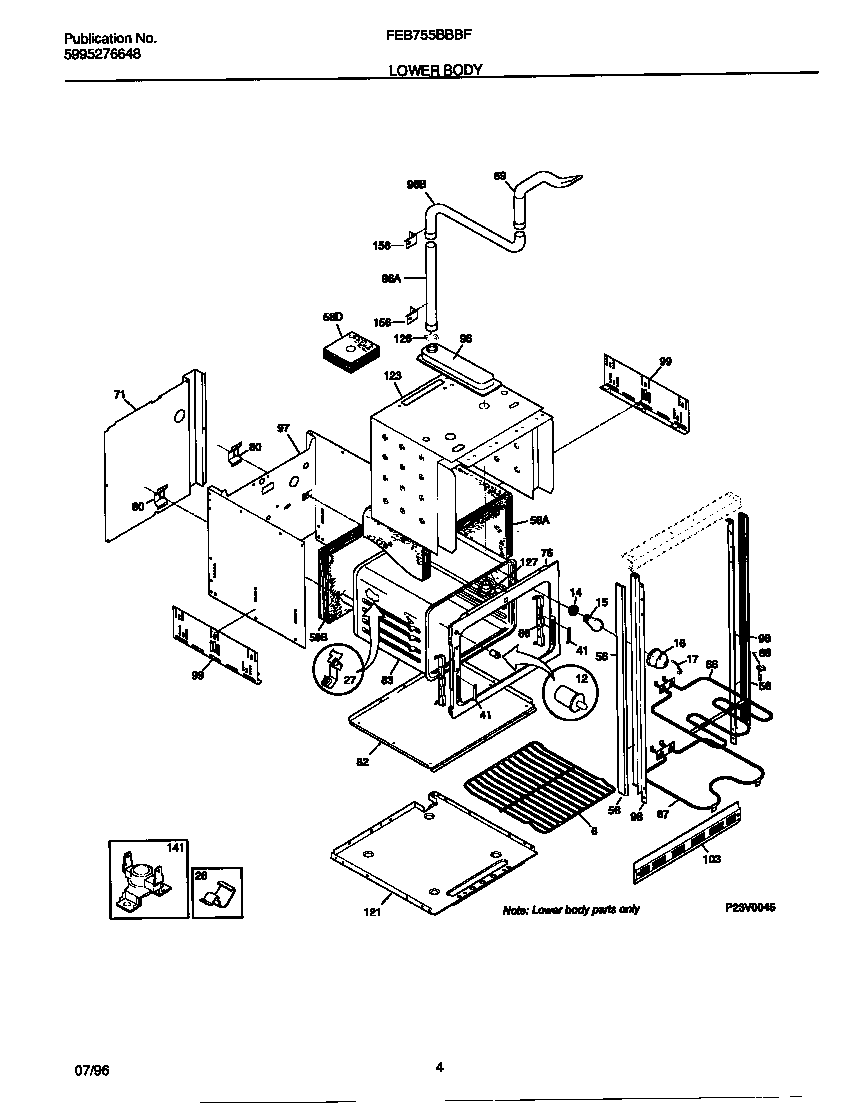

FEB755BBBF 03 – LOWER BODY

Products

PositionProduct
*13362WCI 3201881
*13366COVER-CAPILLARY
*133675304500008 Frigidaire Oven Screw
*1336408002868 Frigidaire 0 Screw Assembly
*13368WCI 5303320505
*13363SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*133655303211311 Frigidaire Refrigerator Screw
6318345216 Frigidaire Oven Rack
12WCI 5301314211
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
41WCI 3019063
56WCI 5303300956
58INSULATION, OVEN WRAPPER
58WCI 5303317714
58INSULATION-WRAP
59WCI 5303300422
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71SHIELD-WIRE
76WCI 5303299859
80WCI 5303301261
82WCI 5303304699
83WCI 5303299383
86WCI 3201631
96DUCT-VENT PIPE
96WCI 3016324
96Duct,oven vent ,center
97WRAPPER
98TRIM-SIDE, INNER, RH
98TRIM-SIDE, INNER, LH
99318284201 Frigidaire PANEL
103WCI 318028700
121WCI 5303304700
123WCI 5303299270
126Clip,insulator
127TUBE-OVEN VENT
1415303302280 Frigidaire Safety Thermostat
156WCI 5303317198
