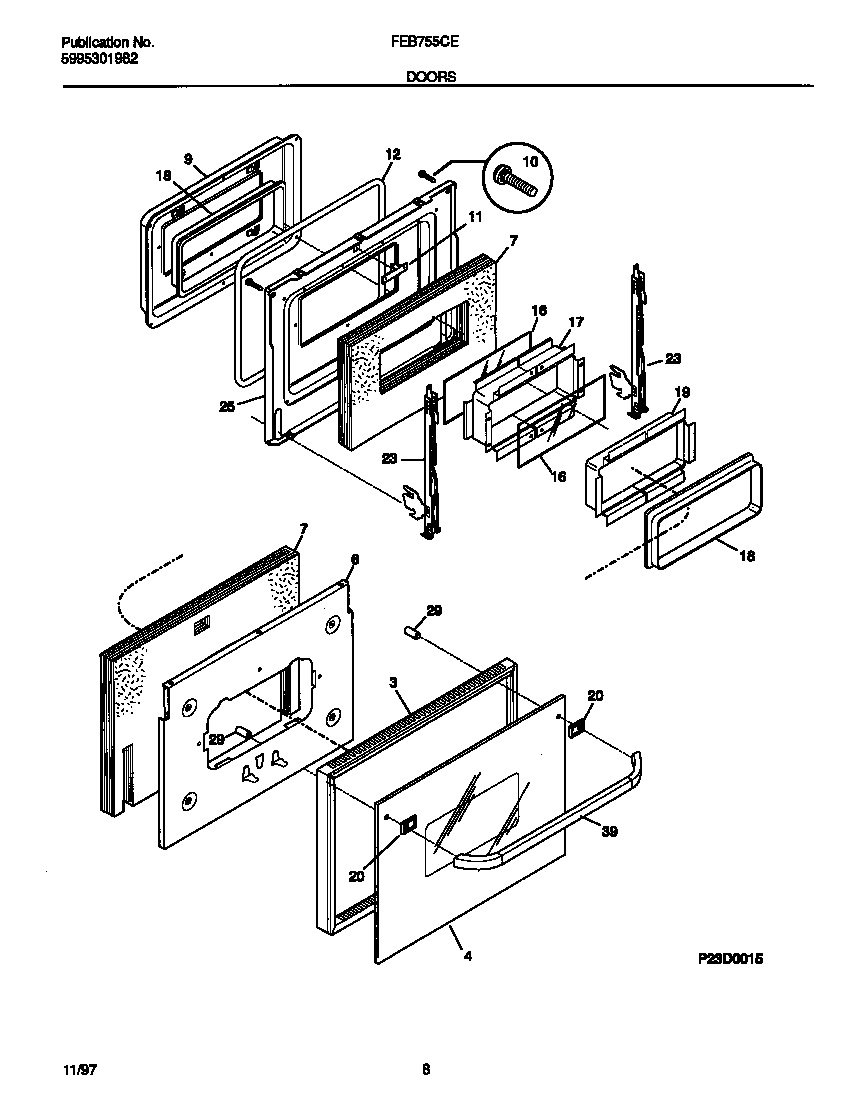

FEB755CEBD 05 – DOORS

FEB755CEBD 05 – DOORS

Written by

in

FEB755CEBD 05 – DOORS

Products

PositionProduct
*37330Plug,button
*37332WCI 5303300414
*373335303308456 Frigidaire Oven Screw
*37331COLLAR-GLASS MTG
*37334Foam seal,(3)
3WCI 318026600
4WCI 5304401679
6WCI 5303210005
7WCI 5303308470
9BLINER-OVEN DOOR, LOWER OVEN
9AWCI 318048301
10WCI 5303311217
11WCI 5301167830
12BWCI 3206270
12AWCI 5303316768
16BGLASS – BAFFLE (2)
16AGLASS-OVEN DOOR, HEAT BARRIER
17BSPACER-GLASS UPPER
17ASPACER-GLASS, LOWER OVEN
18AWCI 3016263
18BSEAL-ROPE
19COLLAR GLASS MTG
20WCI 318014300
23WCI 318074103
25WCI 318038601
29SPACER-HANDLE MTG, (2)
39WCI 316091106
