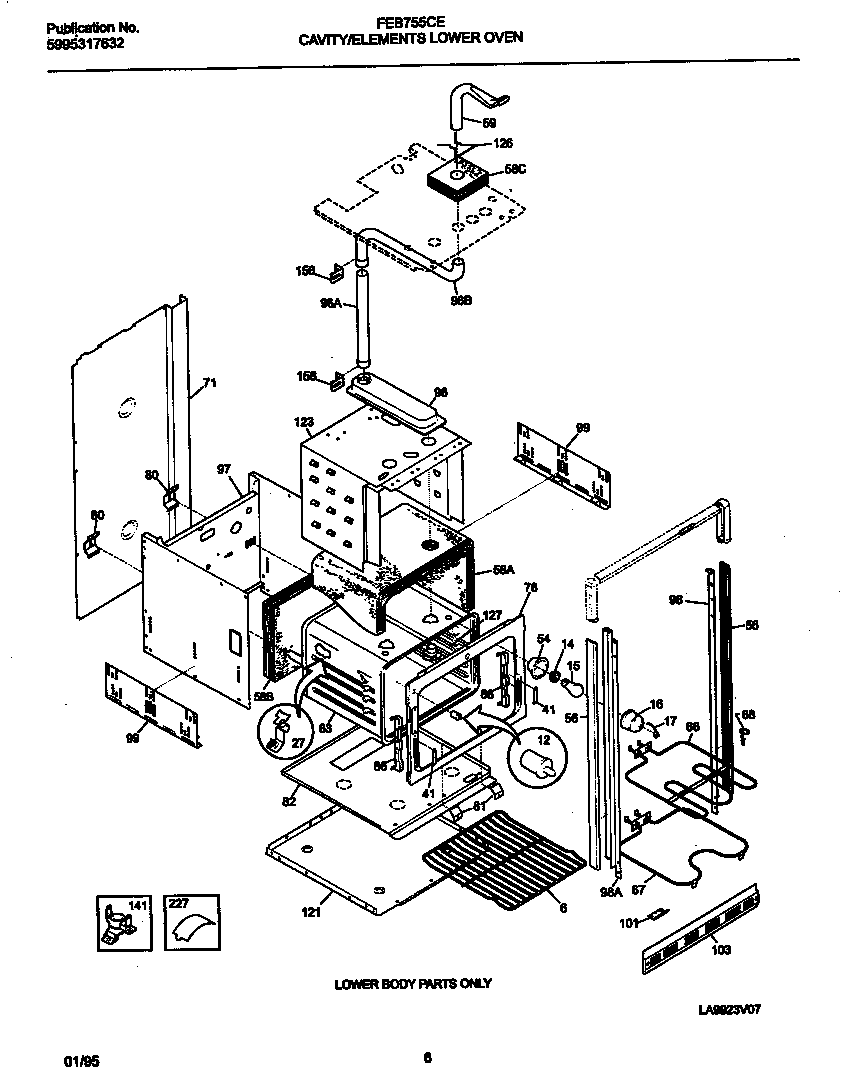

FEB755CEBF 04 – CAVITY/ELEMENTS LOWER OVEN

FEB755CEBF 04 – CAVITY/ELEMENTS LOWER OVEN

Written by

in

FEB755CEBF 04 – CAVITY/ELEMENTS LOWER OVEN

Products

PositionProduct
*02901CLIP-WIRE
*02898WCI 5303320422
*02897WCI 5303302745
*028955304500008 Frigidaire Oven Screw
*02896SCREW, 10-16 X 1 1/4, WHITE
*02900WCI 5303320505
*028935303211311 Frigidaire Refrigerator Screw
*028995303323277 Frigidaire Oven Screw
*02894WCI 3018802
*0289208002868 Frigidaire 0 Screw Assembly
6318345216 Frigidaire Oven Rack
12WCI 5301314211
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
54WCI 5303310514
56WCI 5303300956
58INSULATION, OVEN BACK
58WCI 5303317714
58INSULATION, OVEN WRAPPER
59WCI 318072507
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
685304403015 Frigidaire Oven Support
71SHIELD-WIRE
76WCI 318124201
80WCI 5303301261
81WCI 5303323710
82WCI 5303304699
83WCI 318089507
86WCI 3201631
96WCI 5303317197
96DUCT-VENT PIPE
96Duct,oven vent ,center
97WCI 318066701
98WCI 318029333
98WCI 318029332
99318284201 Frigidaire PANEL
101BRACKET-TRIM (NOT ILLUSTRATED)
103WCI 318028700
121WCI 318145002
123WCI 3180714300
126Clip,insulator
127WCI 318072800
1415303302280 Frigidaire Safety Thermostat
156WCI 5303317198
227WCI 5303323955
