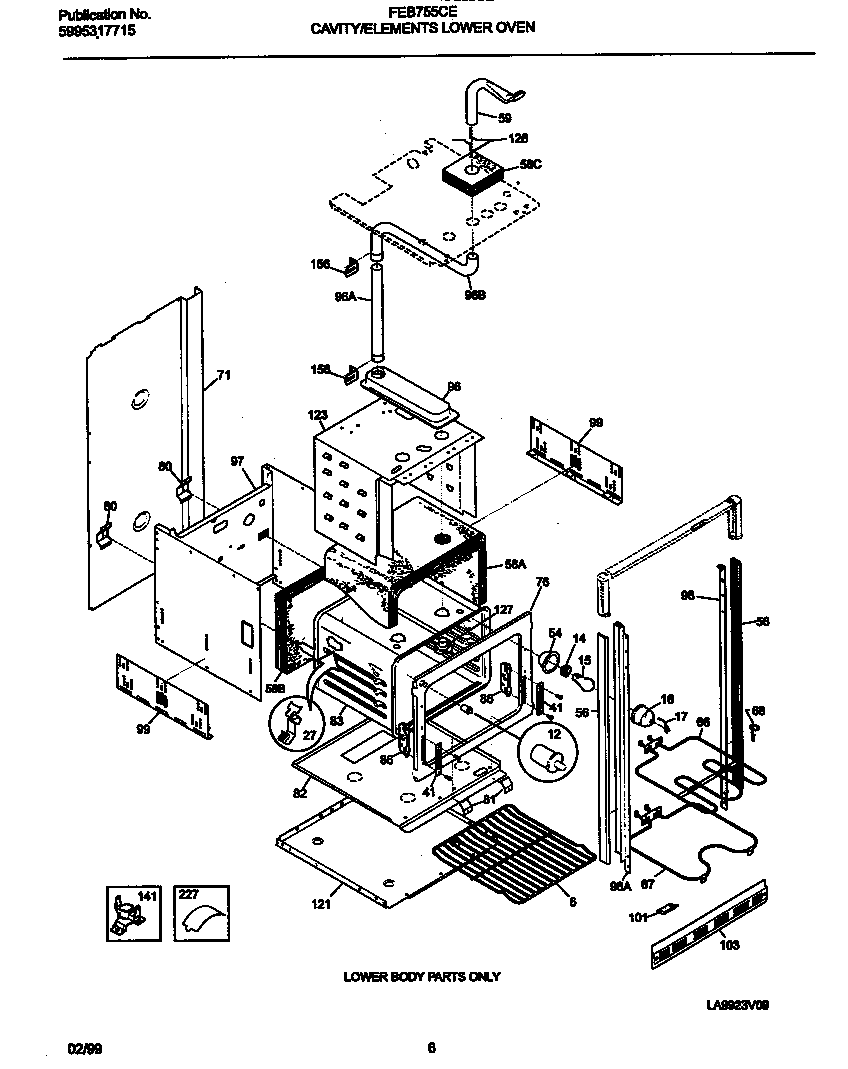

FEB755CEBG 04 – CAVITY/ELEMENTS LOWER OVEN

FEB755CEBG 04 – CAVITY/ELEMENTS LOWER OVEN

Written by

in

FEB755CEBG 04 – CAVITY/ELEMENTS LOWER OVEN

Products

PositionProduct
*86141CLIP-WIRE
*86138WCI 5303320422
*86137WCI 5303302745
*861355304500008 Frigidaire Oven Screw
*86134WCI 3018802
*86136SCREW, 10-16 X 1 1/4, WHITE
*86140WCI 5303320505
*861335303211311 Frigidaire Refrigerator Screw
*8613208002868 Frigidaire 0 Screw Assembly
*861395303323277 Frigidaire Oven Screw
6318345216 Frigidaire Oven Rack
12WCI 5301314211
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 5303310526
54WCI 5303310514
56WCI 5303300956
58INSULATION, OVEN BACK
58INSULATION, OVEN WRAPPER
58WCI 5303317714
59WCI 318072507
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
685304403015 Frigidaire Oven Support
71SHIELD-WIRE
76WCI 318124206
80WCI 5303301261
81WCI 5303323710
82WCI 5303304699
83WCI 318089507
86WCI 5303310524
96WCI 5303317197
96DUCT-VENT PIPE
96Duct,oven vent ,center
97WCI 318066701
98WCI 318029332
98WCI 318029333
99318284201 Frigidaire PANEL
101BRACKET-TRIM (NOT ILLUSTRATED)
103WCI 318028700
121WCI 318145002
123WCI 3180714300
126Clip,insulator
127WCI 318072800
1415303302280 Frigidaire Safety Thermostat
156WCI 5303317198
227WCI 5303323955
