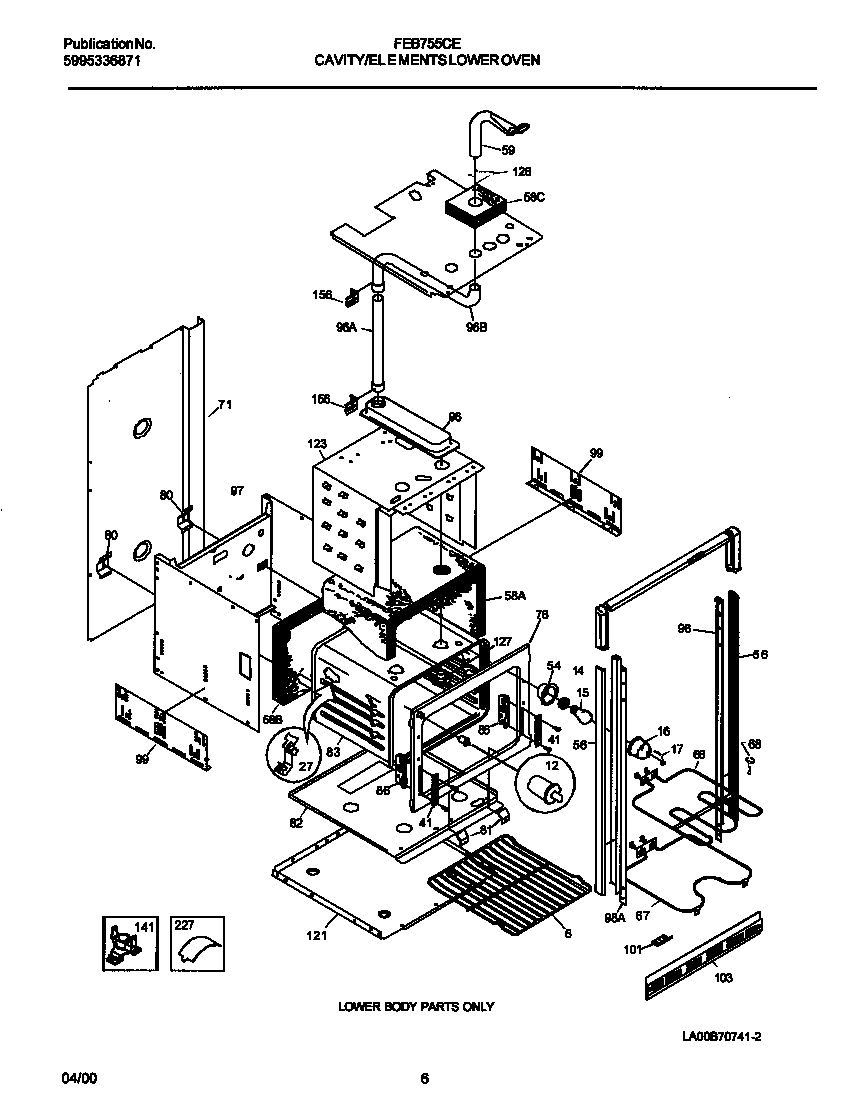

FEB755CEBH 04 – LOWER OVEN

FEB755CEBH 04 – LOWER OVEN

Written by

in

FEB755CEBH 04 – LOWER OVEN

Products

PositionProduct
*61216CLIP-WIRE
*612173201861 Frigidaire Screw
*61223WCI 5303320422
*61227WCI 5303320505
*612215304464772 Frigidaire Refrigerator Wire Tie
*612195303211311 Frigidaire Refrigerator Screw
*612245304480396 Frigidaire Screw
*61220WCI 5303302745
*612255303323277 Frigidaire Oven Screw
*61222WCI 5303311528
*6121808002868 Frigidaire 0 Screw Assembly
6318345216 Frigidaire Oven Rack
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 5303310526
54WCI 5303310514
56WCI 5303300956
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN BACK
58WCI 5303317714
59WCI 318072507
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
685304403015 Frigidaire Oven Support
71WCI 318071120
76WCI 318124212
80WCI 5303301261
81WCI 5303323710
82WCI 5303304699
83WCI 318089507
86WCI 5303310524
96AWCI 318072702
96DUCT-VENT PIPE
96Duct,oven vent ,center
96BWCI 5303317197
97WCI 318066702
98WCI 318029332
98WCI 318029333
99318284201 Frigidaire PANEL
101BRACKET-TRIM (NOT ILLUSTRATED)
103WCI 318028700
121WCI 318145002
123WCI 318071442
126Clip,insulator
127WCI 318072800
1353131903 Frigidaire Door/Drawer Bumper
2195303302280 Frigidaire Safety Thermostat
