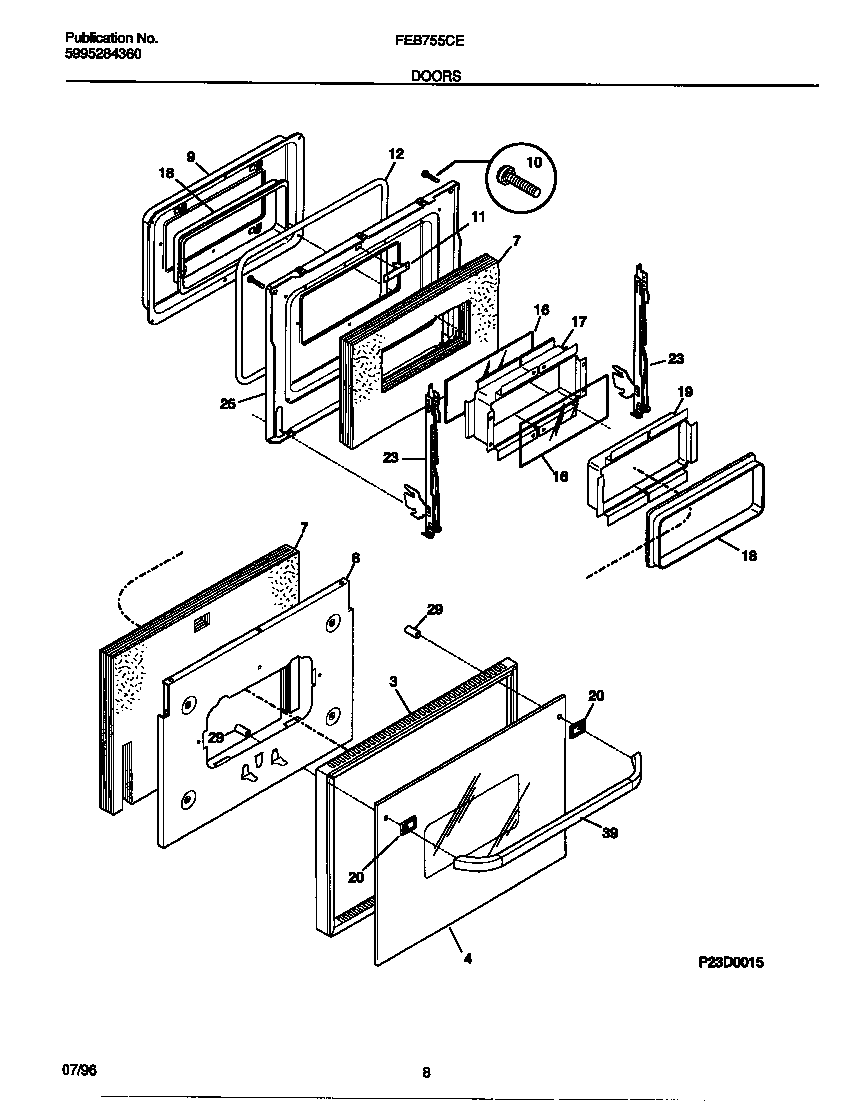

FEB755CESA 05 – DOOR

Products

Position	Product
*30328	Plug,button
*30329	WCI 5303300414
*30332	Foam seal,(3)
*30330	5303307980 Frigidaire Oven Screw
*30331	5303308456 Frigidaire Oven Screw
3	WCI 318026110
4	WCI 5303302279
6	WCI 5303210005
7	WCI 5303308470
9A	WCI 318048301
9B	LINER-OVEN DOOR, LOWER OVEN
10	WCI 5303311217
11	WCI DK1323556
12B	WCI 5303316768
12A	SEAL, DOOR
16A	GLASS – BAFFLE (2)
16B	GLASS-OVEN DOOR, HEAT BARRIER
17A	SPACER-GLASS
17B	SPACER-GLASS
18B	SEAL-ROPE
18A	WCI 3016263
19	WCI 5303210006
20	WCI 5303300173
23B	HINGE-OVEN DOOR, LOWER
23A	WCI 5303018381
23C	5300809968 Frigidaire Dishwasher P-1 Washer
25	WCI 318038601
29	SPACER-HANDLE MTG, (2)
39	HANDLE-DOOR, WHITE, OVEN
