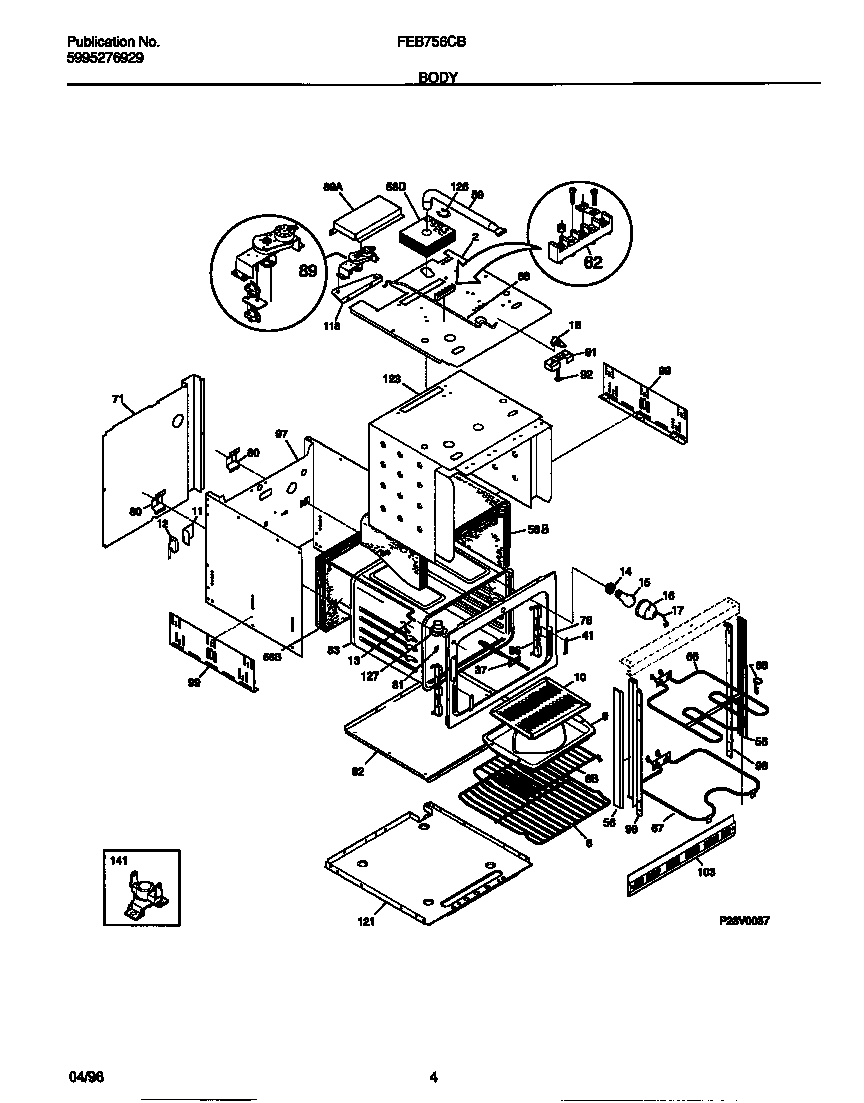

FEB756CBTB 03 – BODY

Products

PositionProduct
*19528CLIP-WIRE
*195225304500008 Frigidaire Oven Screw
*195245303211311 Frigidaire Refrigerator Screw
*19523WCI 3201881
*19526COVER-CAPILLARY
*19527WCI 3018802
*19529WCI 5303316995
*1952508002868 Frigidaire 0 Screw Assembly
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303310521
10WCI 5303310520
11WCI 5303308448
12ASWITCH – OVEN LIGHT
12CWCI 5303308447
12BFASTENER, SWITCH
13BWCI 3204114
13AWCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
56WCI 5303302712
58WCI 5303311220
58INSULATION-WRAP
59WCI 5303300422
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62A5304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
76WCI 5303299384
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83LINER – OVEN
86WCI 3201631
88WCI 3016241
89WCI 3016296
89WCI 5303269766
91WCI 3019069
92AXLE – HINGE (2)
97WRAPPER
98BWCI 5303298953
98AWCI 5303298952
99318284201 Frigidaire PANEL
103WCI 318028702
118WCI 5303308461
121WCI 5303304700
123WCI 5303299270
126Clip,insulator
127TUBE-OVEN VENT
1415303302280 Frigidaire Safety Thermostat
