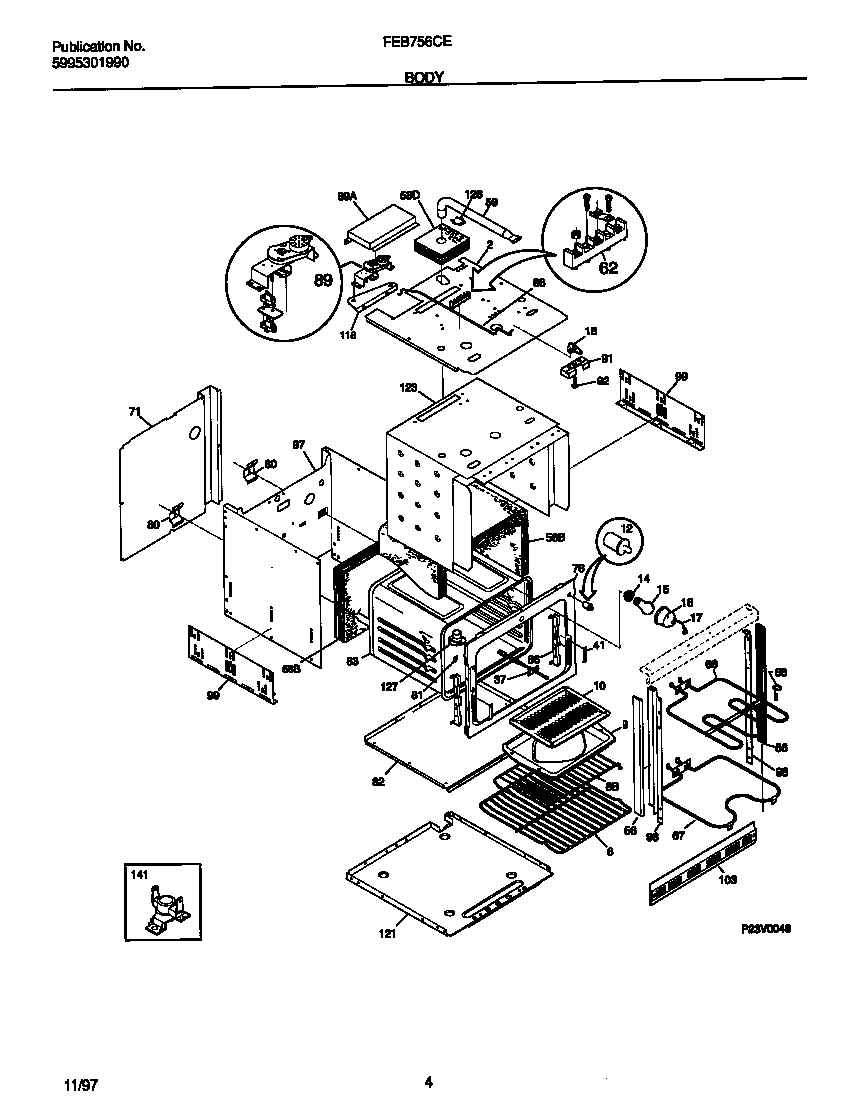

FEB756CEBD 03 – BODY

FEB756CEBD 03 – BODY

Written by

in

FEB756CEBD 03 – BODY

Products

PositionProduct
*52203WCI 3018802
*52210COVER-CAPILLARY
*522095303211311 Frigidaire Refrigerator Screw
*52204HOUSING-DOOR LATCH
*52202CLIP-WIRE
*52206WCI 3201881
*5220708002868 Frigidaire 0 Screw Assembly
*522053201861 Frigidaire Screw
*52208RETAINER PLATE
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
56WCI 5303320422
56WCI 5303298951
58INSULATION-WRAP
58WCI 5303311220
59WCI 318072507
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
76WCI 318124200
76BRACKET-TRIM (NOT ILLUSTRATED)
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83WCI 318089518
86WCI 3201631
88WCI 3016241
89WCI 3016296
89WCI 5303269766
91WCI 3019069
92AXLE – HINGE (2)
97WRAPPER
98BWCI 5303298953
98AWCI 5303298952
99318284201 Frigidaire PANEL
103WCI 318028700
118WCI 5303308461
121WCI 318145002
123WCI 5303299270
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
1415303302280 Frigidaire Safety Thermostat
