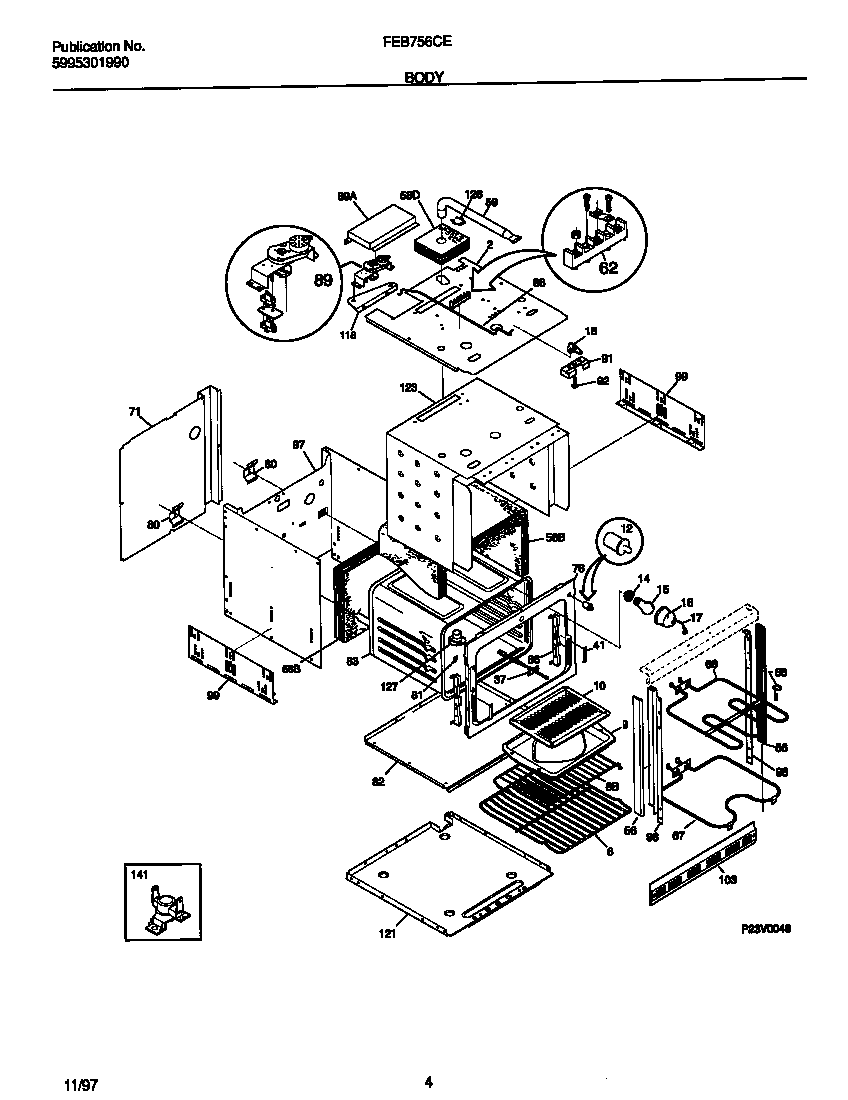

FEB756CESD 03 – BODY

FEB756CESD 03 – BODY

Written by

in

FEB756CESD 03 – BODY

Products

PositionProduct
*52203WCI 3018802
*52206WCI 3201881
*522095303211311 Frigidaire Refrigerator Screw
*52208RETAINER PLATE
*522053201861 Frigidaire Screw
*52202CLIP-WIRE
*52210COVER-CAPILLARY
*5220708002868 Frigidaire 0 Screw Assembly
*52204HOUSING-DOOR LATCH
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
56WCI 5303302711
56WCI 5303320422
58WCI 5303311220
58INSULATION-WRAP
59WCI 318072507
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
76WCI 318039512
76WCI 318124200
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83WCI 318089518
86WCI 3201631
88WCI 3016241
89WCI 3016296
89WCI 5303269766
91WCI 3019069
92AXLE – HINGE (2)
97WRAPPER
98AWCI 5303298952
98BWCI 5303298953
99318284201 Frigidaire PANEL
103WCI 318028701
118WCI 5303308461
121WCI 318145002
123WCI 5303299270
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
1415303302280 Frigidaire Safety Thermostat
