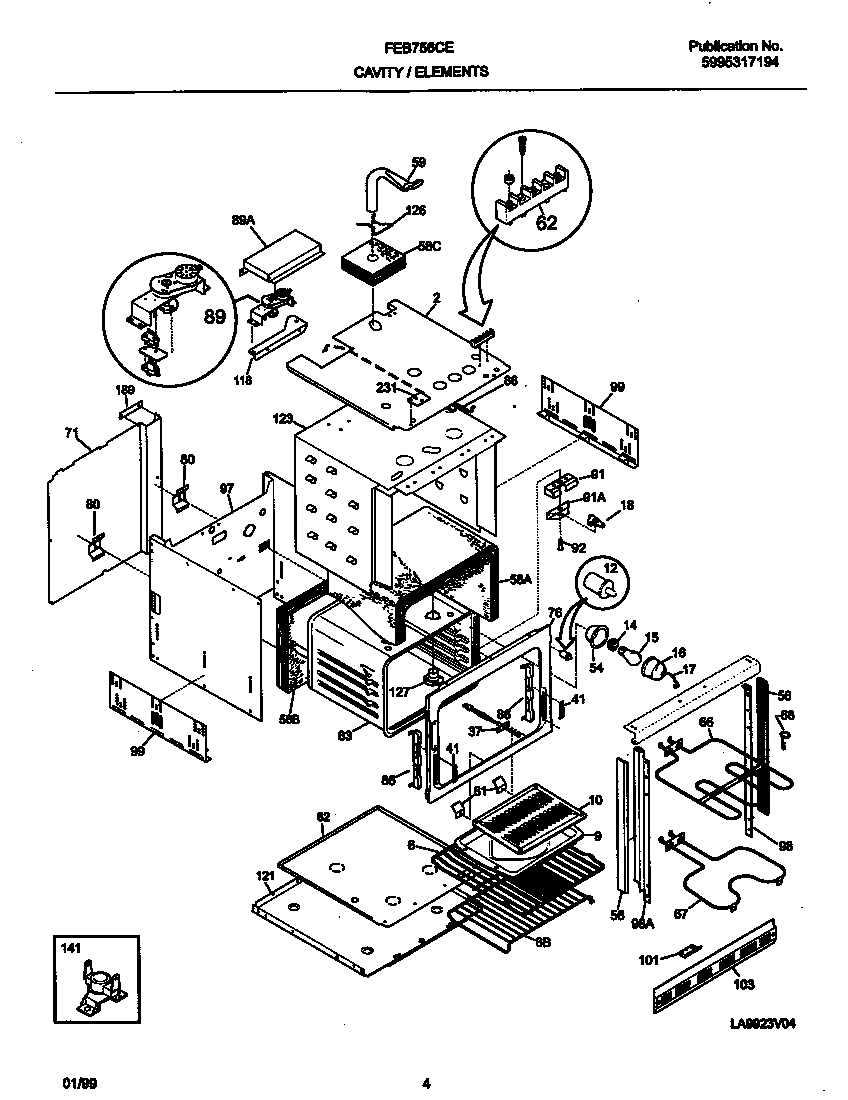

FEB756CESE 03 – BODY

Products

Position	Product
*79684	5303211311 Frigidaire Refrigerator Screw
*79685	5303308456 Frigidaire Oven Screw
*79683	WCI 5303320422
*79687	WCI 5303302745
*79682	08002868 Frigidaire 0 Screw Assembly
2	WCI 5304402380
6	318345216 Frigidaire Oven Rack
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
14	SOCKET-LIGHT/LAMP, OVEN
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
18	LATCH-DOOR
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 3019063
56	WCI 5303298951
58	WCI 5303311220
58	INSULATION WRAPPER
58	INSULATION-WRAP
59	WCI 318072507
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5303016247 Frigidaire Broil Element
67	318255101 Frigidaire Oven Bake Element
68	5304403015 Frigidaire Oven Support
71	WCI 5303304701
76	WCI 318124200
80	WCI 5303301261
81	WCI 5303323710
82	WCI 55303304699
83	WCI 318089518
86	WCI 3201631
88	WCI 3016241
89	WCI 5303269766
89	WCI 3016296
91	HOUSING-DOOR LATCH
91	WCI 3019069
92	AXLE – HINGE (2)
97	WRAPPER
98	WCI 5303298952
98	WCI 5303298953
99	318284201 Frigidaire PANEL
101	BRACKET-TRIM (NOT ILLUSTRATED)
103	WCI 318028700
118	WCI 5303308461
121	WCI 318145002
123	WCI 5303299270
126	Clip,insulator
127	318317100 Frigidaire Adapter Assembly
141	5303302280 Frigidaire Safety Thermostat
189	RETAINER PLATE
231	COVER-CAPILLARY
