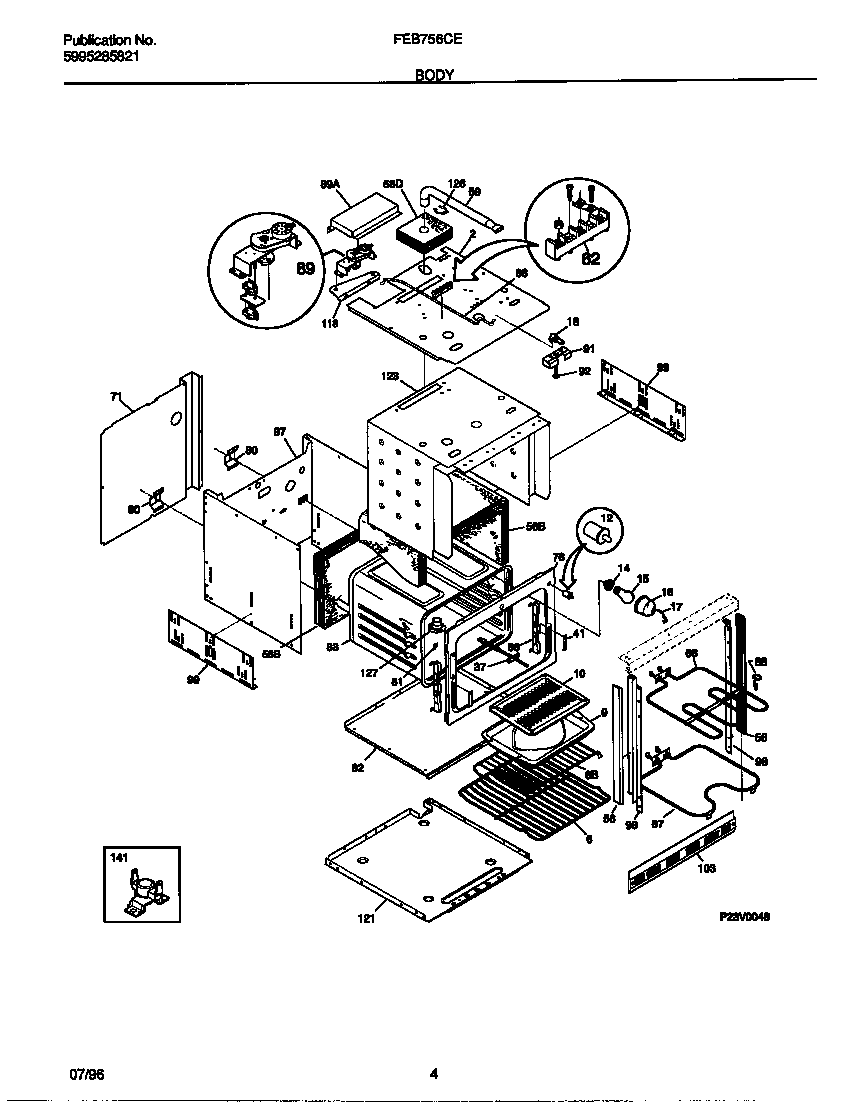

FEB756CETA 03 – BODY

FEB756CETA 03 – BODY

Written by

in

FEB756CETA 03 – BODY

Products

PositionProduct
*245655304500008 Frigidaire Oven Screw
*245663201861 Frigidaire Screw
*24569WCI 5303319468
*24562WCI 3018802
*24564COVER-CAPILLARY
*245685303211311 Frigidaire Refrigerator Screw
*24563WCI 3201881
*2456708002868 Frigidaire 0 Screw Assembly
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
28CLIP-WIRE
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
56WCI 5303302712
56WCI 5303320422
58INSULATION-WRAP
58WCI 5303311220
59WCI 318072507
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62A5304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
76WCI 318124200
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83WCI 318089512
86WCI 3201631
88WCI 3016241
89WCI 3016296
89WCI 5303269766
91WCI 3019069
92AXLE – HINGE (2)
97WRAPPER
98AWCI 5303298952
98BWCI 5303298953
99318284201 Frigidaire PANEL
103WCI 318028702
118WCI 5303308461
121WCI 5303304700
123WCI 5303299270
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
1415303302280 Frigidaire Safety Thermostat
