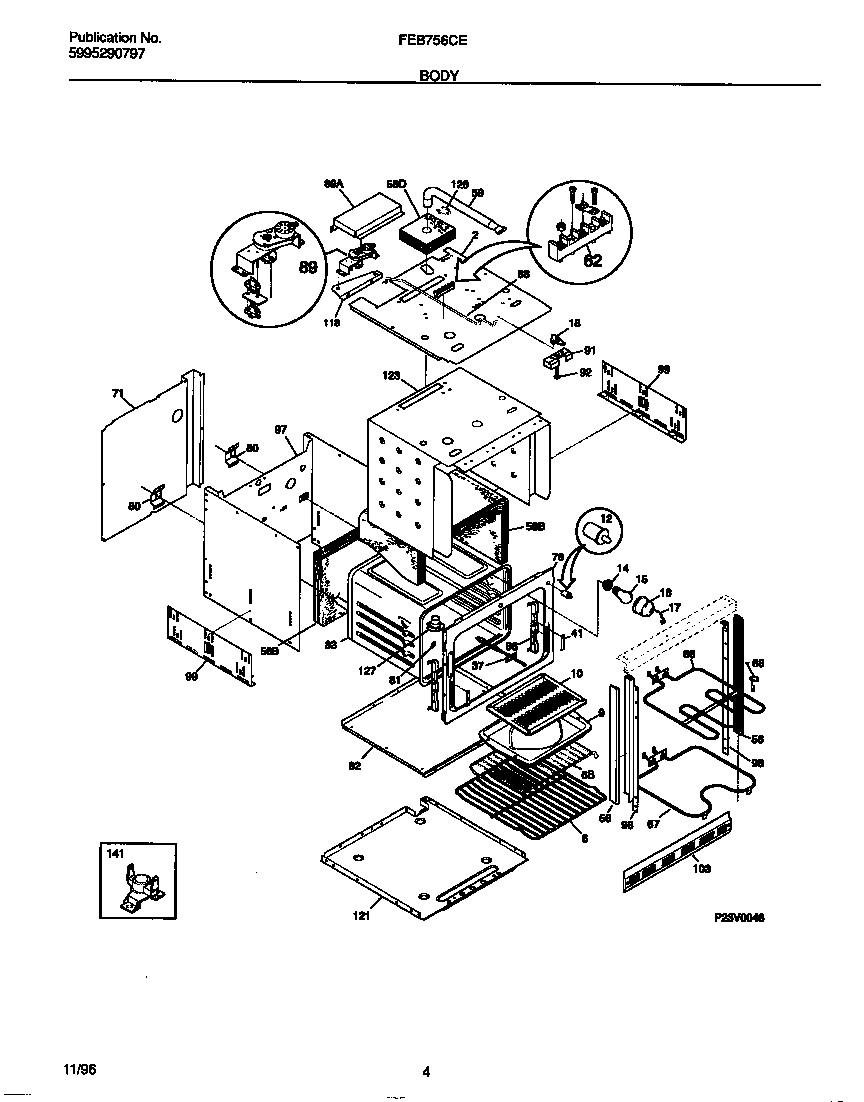

FEB756CETC 03 – BODY

FEB756CETC 03 – BODY

Written by

in

FEB756CETC 03 – BODY

Products

PositionProduct
*36922WCI 3018802
*369263201861 Frigidaire Screw
*369255304500008 Frigidaire Oven Screw
*3692708002868 Frigidaire 0 Screw Assembly
*36923WCI 3201881
*36929WCI 5303319468
*36924COVER-CAPILLARY
*369285303211311 Frigidaire Refrigerator Screw
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
235300809968 Frigidaire Dishwasher P-1 Washer
28CLIP-WIRE
37316217002 Frigidaire Oven Temperature Probe
41WCI 3019063
56WCI 5303320422
56WCI 5303302712
58WCI 5303311220
58INSULATION-WRAP
59WCI 318072507
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
76WCI 318124200
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83WCI 318089512
86WCI 3201631
88WCI 3016241
89WCI 3016296
89WCI 5303269766
91WCI 3019069
92AXLE – HINGE (2)
97WRAPPER
98AWCI 5303298952
98BWCI 5303298953
99318284201 Frigidaire PANEL
103WCI 318028702
118WCI 5303308461
121WCI 5303304700
123WCI 5303299270
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
1415303302280 Frigidaire Safety Thermostat
