FEB786CEBE 03 – BODY

FEB786CEBE 03 – BODY

Written by

in

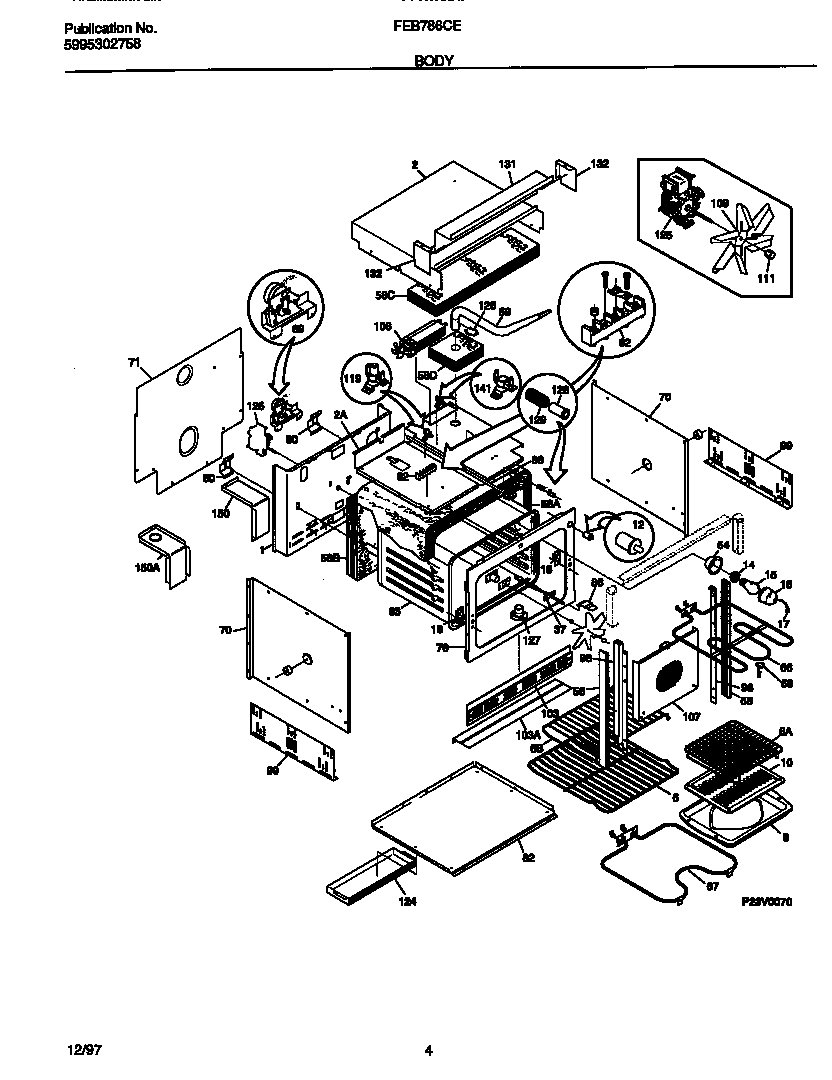

FEB786CEBE 03 – BODY

Products

PositionProduct
*93300WCI 318013501
*93317WCI 318078511
*93303SCREW, 8 X 5/8, SPARK MODULE
*933105304464772 Frigidaire Refrigerator Wire Tie
*93299318531800 Frigidaire Oven Spacer
*93297PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
*933085303211311 Frigidaire Refrigerator Screw
*93305318531702 Frigidaire Oven Spacer
*93314WCI 5303321211
*93311WCI 5303311207
*93313WCI 5303321210
*93316PLUG, DOOR LINER
*93302CLIP-WIRE
*93315WCI 5303321212
*93298WCI 5303320422
*93306WCI 318070700
*93309WCI 5303311528
*93312WCI 5303320846
*933013201861 Frigidaire Screw
*93307WCI 318070701
*9330408002868 Frigidaire 0 Screw Assembly
1WCI 318066700
2WCI 318071500
2WCI 318102000
6Shelf,broiler pan
6WCI 318025202
6WCI 5303299719
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18318090310 Frigidaire Oven Latch
37316217002 Frigidaire Oven Temperature Probe
54WCI 5303310514
56WCI 5303298951
58WCI 5303316994
58WCI 5303311218
58WCI 5303311214
58WCI 5303311219
59WCI 318072510
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70WCI 5303300142
71WCI 318071100
76WCI 318080300
80WCI 5303301261
82WCI 318071800
83WCI 318089519
86WCI 318113900
88WCI 318118900
89WCI 5303311223
98AWCI 318029910
98BWCI 318029911
99WCI 318055420
103TRIM-BASE,SMALL ,BLACK
103WCI 318083401
103WCI 318028700
107WCI 5303318711
108BWCI 318023802
108AWCI 318073001
109FAN BLADE
111B316008401 Frigidaire Washer P-1
111A316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076900
125BWCI 5303320346
125A5303311202 Frigidaire P1-Motor-Conv
126Clip,insulator
127A318317100 Frigidaire Adapter Assembly
127BWCI 5303311195
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102200
132AEND-COVER, CONTROL HSG, RH
132BEND-COVER, CONTROL HSG, LH
141Thermostat,safety ,for fan
150ABRACKET-SUPPORT, ACCESS COVER, LH
150BBRACKET-SUPPORT, ACCESS COVER, RH
