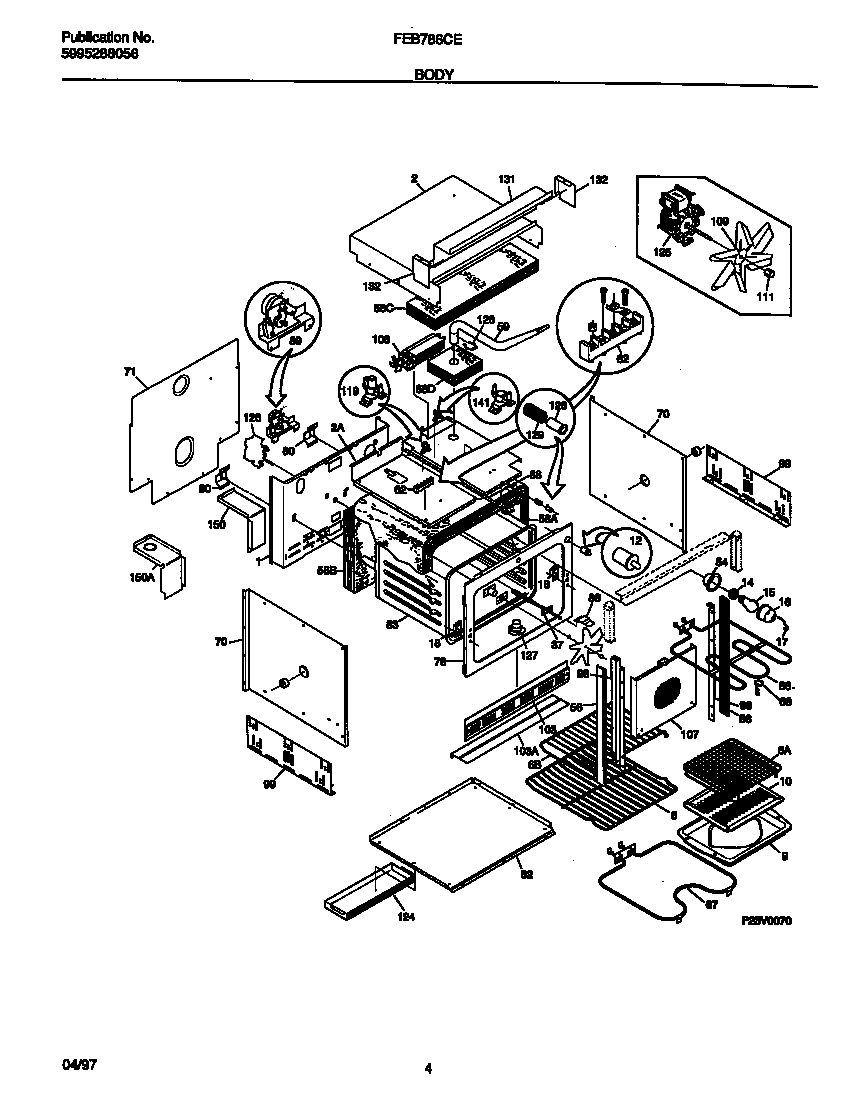

FEB786CESA 03 – BODY

FEB786CESA 03 – BODY

Written by

in

FEB786CESA 03 – BODY

Products

PositionProduct
*654515303211311 Frigidaire Refrigerator Screw
*654485303013272 Frigidaire Oven Nut
*65455WCI 5303321211
*65446SCREW, 8 X 5/8, SPARK MODULE
*65459CLIP-WIRE
*65454WCI 5303321210
*65447WCI 3201881
*65458WCI 318078500
*65457WCI 5303321213
*65452WCI 5303311528
*65450WCI 318070701
*65449WCI 318070700
*65456WCI 5303321212
*65453WCI 5303320846
*65445PLUG, DOOR LINER
1WCI 318066700
2WCI 318102000
2WCI 318071500
6WCI 5303299719
6WCI 318025202
6Shelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18318090310 Frigidaire Oven Latch
37A316217002 Frigidaire Oven Temperature Probe
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
54WCI 5303310514
56WCI 5303320422
56WCI 5303302711
58WCI 5303316994
58WCI 5303311219
58WCI 5303311218
58WCI 5303311214
59WCI 318072510
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70AWCI 5303300142
70B318531800 Frigidaire Oven Spacer
71WCI 318071100
76WCI 318080300
80WCI 5303301261
82WCI 318071800
83WCI 318089510
86WCI 318113900
88AWCI 318118900
88BWCI 318013501
89AWCI 5303311223
89B3201861 Frigidaire Screw
98BWCI 318029911
98AWCI 318029910
99WCI 318055420
103BTRIM-BASE,SMALL ,WHITE
103AWCI 318028701
103WCI 318083402
107WCI 5303318711
108WCI 318073001
109WCI 318137400
111AWCI 318137700
111BWCI 318137600
119318004900 Frigidaire Thermal Switch
124WCI 318076900
125AWCI 318137100
125BWCI 5303320346
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102200
132AEND-COVER, CONTROL HSG, RH
132BEND-COVER, CONTROL HSG, LH
141Thermostat,safety ,for fan
150BRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
