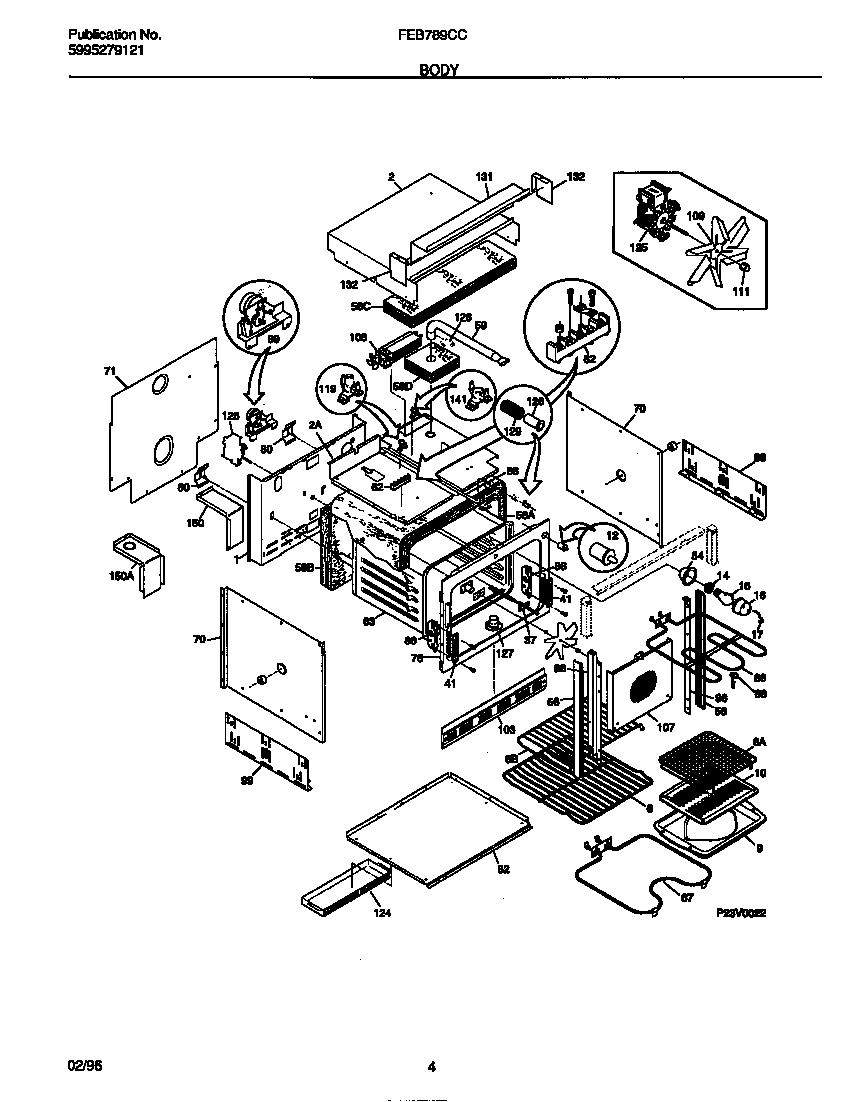

FEB789CCBB 03 – BODY

FEB789CCBB 03 – BODY

Written by

in

FEB789CCBB 03 – BODY

Products

PositionProduct
*25289SCREW, 8 X 5/8, SPARK MODULE
*25290SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*252875303211311 Frigidaire Refrigerator Screw
*25292WCI 318052007
*25284WCI 3201881
*2529108002868 Frigidaire 0 Screw Assembly
*25288WCI 5303311528
*25285WCI 318070700
*25286WCI 318070701
1WCI 318066700
2WCI 318102000
2AWCI 318071500
6AShelf,broiler pan
6WCI 5303299719
6BWCI 318025202
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
235300809968 Frigidaire Dishwasher P-1 Washer
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37A316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 5303298951
56WCI 5303318690
58CWCI 5303311219
58AWCI 5303311218
58BWCI 5303311214
58DWCI 5303311220
59WCI 318072503
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70WCI 5303300142
71WCI 318071100
76WCI 318056104
80WCI 5303301261
82WCI 318071800
83WCI 5303318710
86WCI 5303310524
88AWCI 5303311222
88BWCI 318013501
89AWCI 5303311223
89B3201861 Frigidaire Screw
98BWCI 318029901
98AWCI 318029900
99WCI 318055400
103WCI 318028700
107WCI 5303318711
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076900
1255303311202 Frigidaire P1-Motor-Conv
126Clip,insulator
127TUBE-OVEN VENT
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102200
132BEND-COVER, CONTROL HSG, LH
132AEND-COVER, CONTROL HSG, RH
141Thermostat,safety ,for fan
150ABRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
