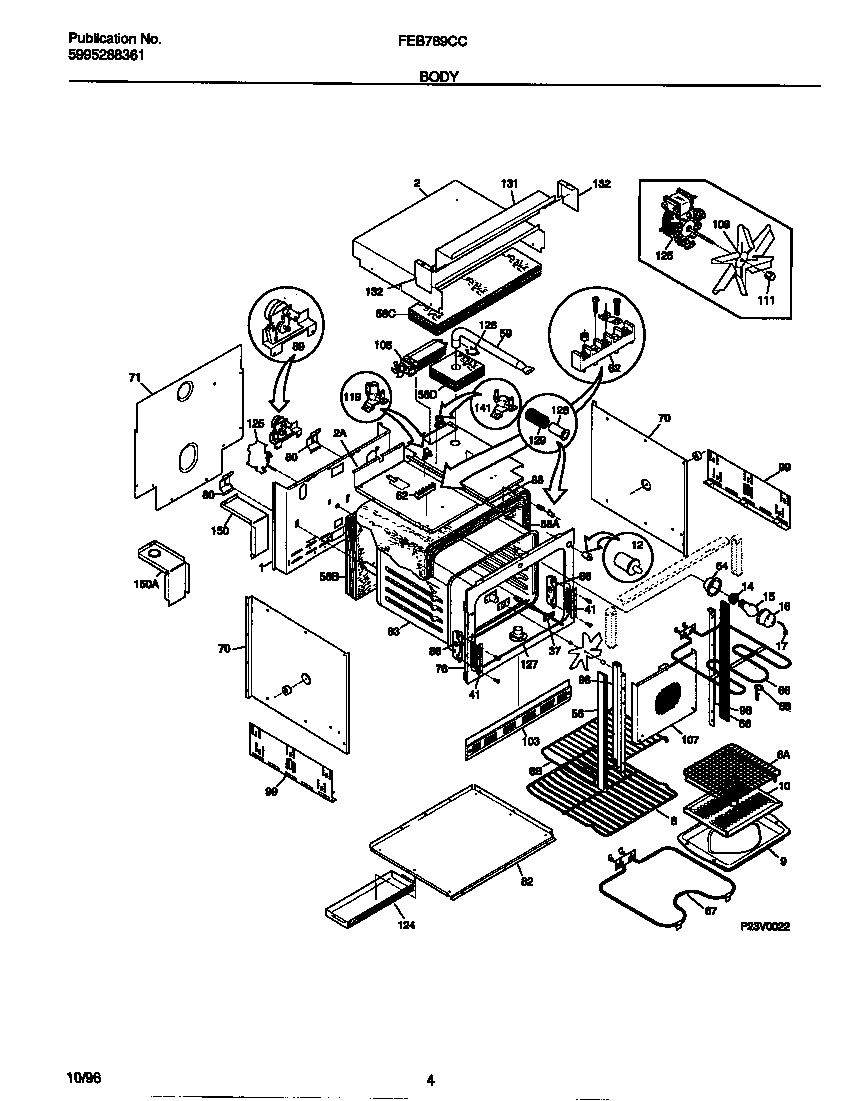

FEB789CCBD 03 – BODY

FEB789CCBD 03 – BODY

Written by

in

FEB789CCBD 03 – BODY

Products

PositionProduct
*79330WCI 5303311528
*79331WCI 5303318690
*79325WCI 3201881
*79324SCREW, 8 X 5/8, SPARK MODULE
*7932608002868 Frigidaire 0 Screw Assembly
*79332WCI 318052007
*793295303211311 Frigidaire Refrigerator Screw
*79327WCI 318070700
*79328WCI 318070701
1WCI 318066700
2AWCI 318071500
2WCI 318102000
6WCI 5303299719
6AShelf,broiler pan
6BWCI 318025202
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
37A316217002 Frigidaire Oven Temperature Probe
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
41WCI 5303310526
54WCI 5303310514
56WCI 5303298951
58AWCI 5303311218
58CWCI 5303311219
58BWCI 5303311214
58DWCI 5303311220
59WCI 318072510
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62A5304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70WCI 5303300142
71WCI 318071100
76WCI 318056104
80WCI 5303301261
82WCI 318071800
83WCI 318089510
86WCI 5303310524
88BWCI 318013501
88AWCI 5303311222
89AWCI 5303311223
89B3201861 Frigidaire Screw
98BWCI 318029901
98AWCI 318029900
99WCI 318055420
103TRIM-BASE,SMALL ,BLACK
103WCI 318028700
107WCI 5303318711
108WCI 318073001
109WCI 318137400
111AWCI 318137700
111BWCI 318137600
119318004900 Frigidaire Thermal Switch
124WCI 318076900
125BWCI 5303320346
125AWCI 318137100
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102200
132BEND-COVER, CONTROL HSG, LH
132AEND-COVER, CONTROL HSG, RH
141Thermostat,safety ,for fan
150ABRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
