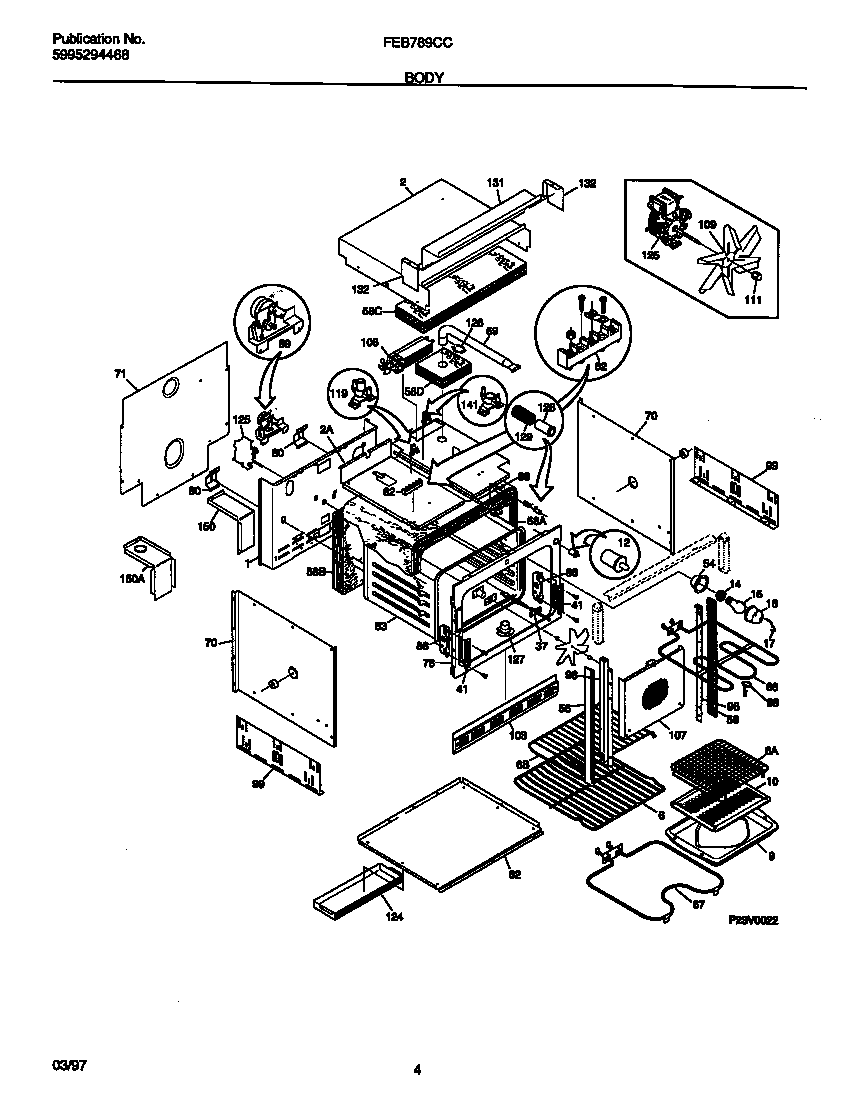

FEB789CCBE 03 – BODY

FEB789CCBE 03 – BODY

Written by

in

FEB789CCBE 03 – BODY

Products

PositionProduct
*16373WCI 5303311528
*1636808002868 Frigidaire 0 Screw Assembly
*16365CLIP-WIRE
*16366SCREW, 8 X 5/8, SPARK MODULE
*16378WCI 318078500
*16377WCI 318052058
*16376PLUG, DOOR LINER
*163725303211311 Frigidaire Refrigerator Screw
*16375WCI 5303321212
*16374WCI 5303320846
*16367WCI 3201881
*16369318531702 Frigidaire Oven Spacer
*16370WCI 318070700
*16371WCI 318070701
1WCI 318066700
2AWCI 318071500
2WCI 318102000
6AShelf,broiler pan
6BWCI 318025202
6WCI 5303299719
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37A316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 5303320422
56WCI 5303298951
58DWCI 5303316994
58BWCI 5303311214
58AWCI 5303311218
58CWCI 5303311219
59WCI 318072510
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70AWCI 5303300142
70B318531800 Frigidaire Oven Spacer
71WCI 318071100
76WCI 318056104
80WCI 5303301261
82WCI 318071800
83WCI 318089510
86WCI 5303310524
88AWCI 5303311222
88BWCI 318013501
89AWCI 5303311223
89B3201861 Frigidaire Screw
98AWCI 318029900
98BWCI 318029901
99WCI 318055420
103TRIM-BASE,SMALL ,BLACK
103WCI 318028700
107WCI 5303318711
108AWCI 318073001
108BWCI 318023802
109FAN BLADE
111B316008401 Frigidaire Washer P-1
111A316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076900
125BWCI 5303320346
125A5303311202 Frigidaire P1-Motor-Conv
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102200
132AEND-COVER, CONTROL HSG, RH
132BEND-COVER, CONTROL HSG, LH
141Thermostat,safety ,for fan
150ABRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
