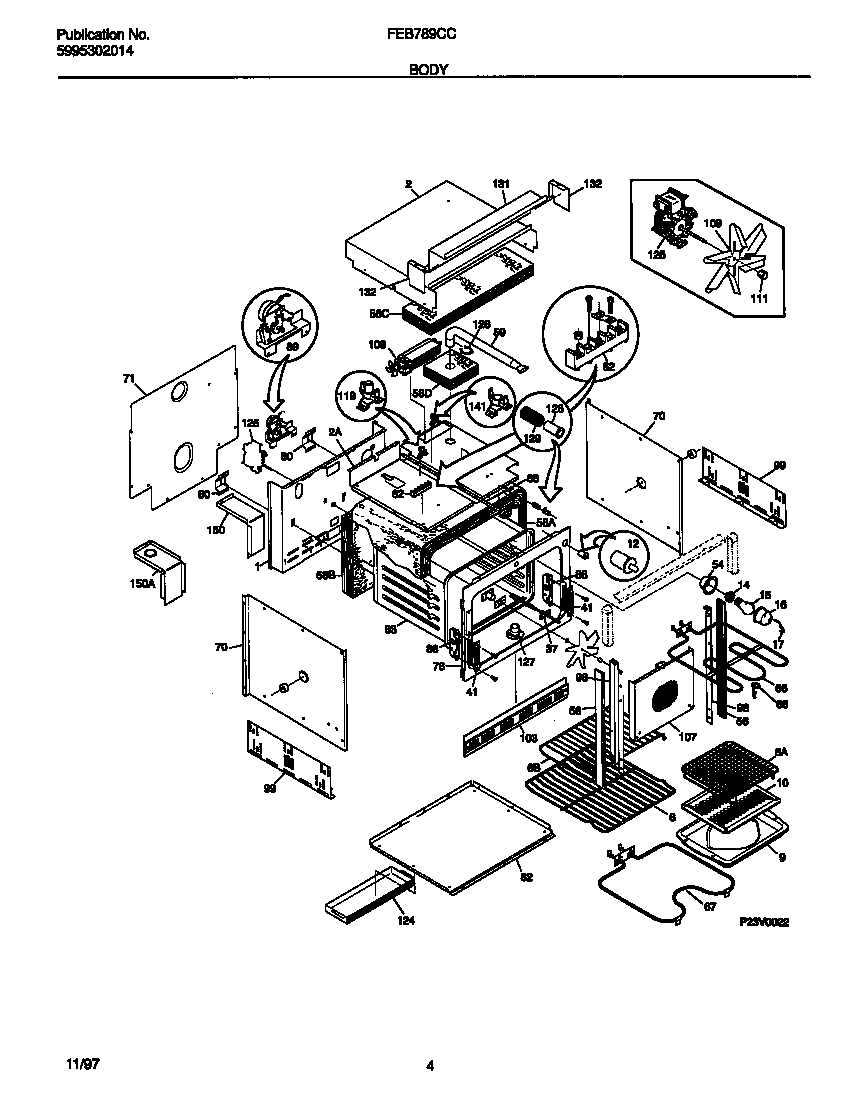

FEB789CCSF 03 – BODY

Products

PositionProduct
*00126SCREW, 8 X 5/8, SPARK MODULE
*00128WCI 3201881
*00125CLIP-WIRE
*00137WCI 318078511
*00136WCI 318052058
*001335303211311 Frigidaire Refrigerator Screw
*001273201861 Frigidaire Screw
*00135WCI 5303320846
*00130318531702 Frigidaire Oven Spacer
*0012908002868 Frigidaire 0 Screw Assembly
*00132WCI 318070701
*00131WCI 318070700
*00134WCI 5303311528
1WCI 318066700
2AWCI 318071500
2WCI 318102000
6WCI 5303299719
6BWCI 318025202
6AShelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
37A316217002 Frigidaire Oven Temperature Probe
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
41WCI 5303310526
54WCI 5303310514
56WCI 5303320422
56WCI 5303302711
58CWCI 5303311219
58DWCI 5303316994
58BWCI 5303311214
58AWCI 5303311218
59WCI 318072510
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70AWCI 5303300142
70B318531800 Frigidaire Oven Spacer
71WCI 318071100
76WCI 318039512
76WCI 318056104
80WCI 5303301261
82WCI 318071800
83WCI 318089519
86WCI 5303310524
88BWCI 318013501
88AWCI 5303311222
89WCI 5303311223
98AWCI 318029900
98BWCI 318029901
99WCI 318055420
103TRIM-BASE,SMALL ,WHITE
103WCI 318028701
107WCI 5303318711
108WCI 318073001
109FAN BLADE
111A316136600 Frigidaire Oven Range Lock Nut
111B316008401 Frigidaire Washer P-1
119318004900 Frigidaire Thermal Switch
124WCI 318076900
125BWCI 5303320346
125A5303311202 Frigidaire P1-Motor-Conv
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102200
132AEND-COVER, CONTROL HSG, RH
132BEND-COVER, CONTROL HSG, LH
141Thermostat,safety ,for fan
150ABRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
