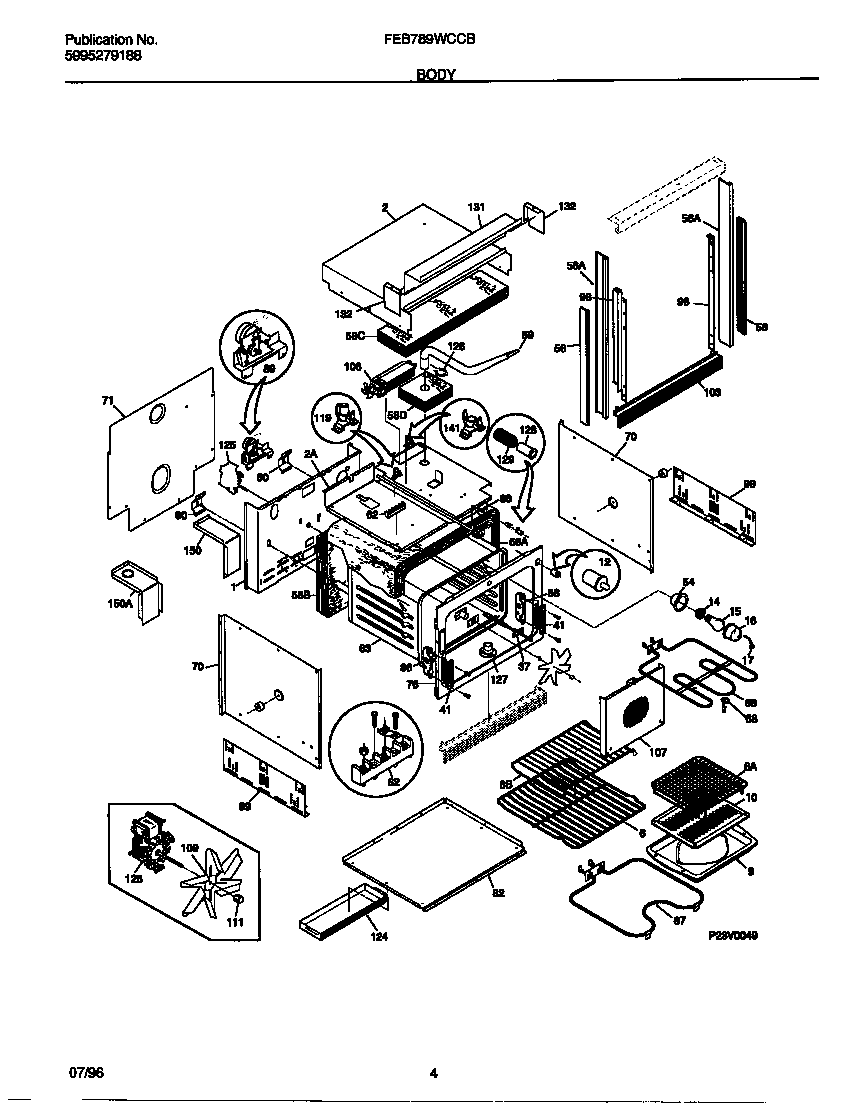

FEB789WCCB 03 – BODY

FEB789WCCB 03 – BODY

Written by

in

FEB789WCCB 03 – BODY

Products

PositionProduct
*45970WCI 318052007
*45966SCREW, 8 X 5/8, SPARK MODULE
*459685303211311 Frigidaire Refrigerator Screw
*45969WCI 5303311528
*45965318531702 Frigidaire Oven Spacer
*45971WCI 318078500
*45967WCI 3201881
*4596408002868 Frigidaire 0 Screw Assembly
1WCI 318066700
2AWCI 318071500
2WCI 318102000
6BWCI 318025200
6WCI 318025300
6AShelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
28CLIP-WIRE
37PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-BODYSIDE, BLACK, (2)
56WCI 318029500
56WCI 5303318690
56WCI 318029501
58BWCI 5303311214
58AWCI 5303311218
58CWCI 5303311219
58DWCI 5303316994
59WCI 318072505
625304409888 Frigidaire Oven Terminal Block with Hardware
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70WCI 5303300142
71WCI 318071100
76WCI 318056104
80WCI 5303301261
82WCI 318071800
83WCI 5303318710
86WCI 5303310524
88WCI 318013501
88WCI 5303311222
893201861 Frigidaire Screw
89WCI 5303311223
98WCI 318029801
98WCI 318029800
99WCI 318055400
103WCI 5303316773
107WCI 5303318711
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076900
1255303311202 Frigidaire P1-Motor-Conv
126Clip,insulator
127TUBE-OVEN VENT
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102201
132END-COVER, CONTROL HSG, RH
132END-COVER, CONTROL HSG, LH
141Thermostat,safety ,for fan
150ABRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
