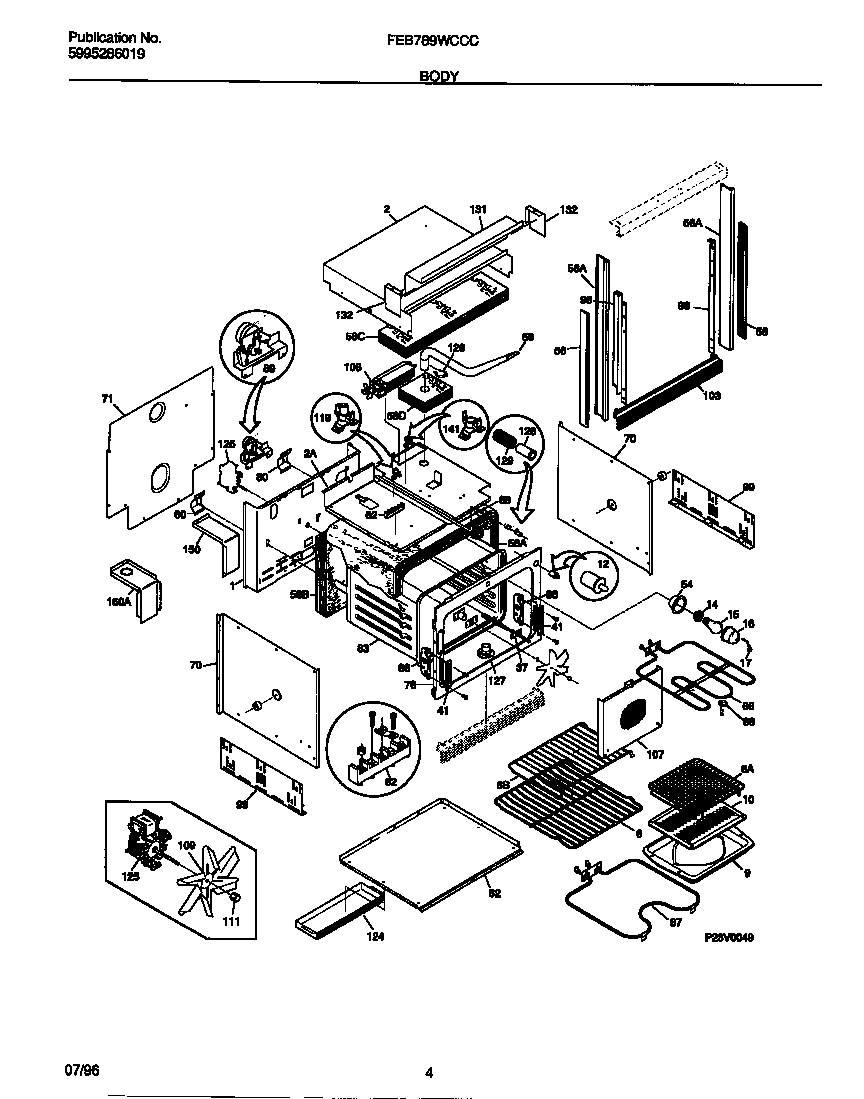

FEB789WCCC 03 – BODY

FEB789WCCC 03 – BODY

Written by

in

FEB789WCCC 03 – BODY

Products

PositionProduct
*57091WCI 318052007
*57085WCI 3201881
*57090WCI 5303311528
*5708808002868 Frigidaire 0 Screw Assembly
*57087SCREW, 8 X 5/8, SPARK MODULE
*570895303211311 Frigidaire Refrigerator Screw
*57086318531702 Frigidaire Oven Spacer
*57092WCI 318078500
1WCI 318066700
2WCI 318102000
2AWCI 318071500
6AShelf,broiler pan
6WCI 318025300
6BWCI 318025200
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
28CLIP-WIRE
37PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318029501
56WCI 5303320422
56TRIM-BODYSIDE, BLACK, (2)
56WCI 318029500
58DWCI 5303316994
58CWCI 5303311219
58AWCI 5303311218
58BWCI 5303311214
59WCI 318072511
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
70WCI 5303300142
71WCI 318071100
76WCI 318056104
80WCI 5303301261
82WCI 318071800
83WCI 318089510
86WCI 5303310524
88WCI 318013501
88WCI 5303311222
893201861 Frigidaire Screw
89WCI 5303311223
98WCI 318029801
98WCI 318029800
99WCI 318055420
103WCI 5303316773
103TRIM-BASE,SMALL ,BLACK
107WCI 5303318711
108WCI 318073001
109WCI 318137400
111WCI 318137700
111WCI 318137600
119318004900 Frigidaire Thermal Switch
124WCI 318076900
125WCI 318137100
125WCI 5303320346
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102201
132END-COVER, CONTROL HSG, RH
132END-COVER, CONTROL HSG, LH
141Thermostat,safety ,for fan
150ABRACKET-SUPPORT, ACCESS COVER, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
