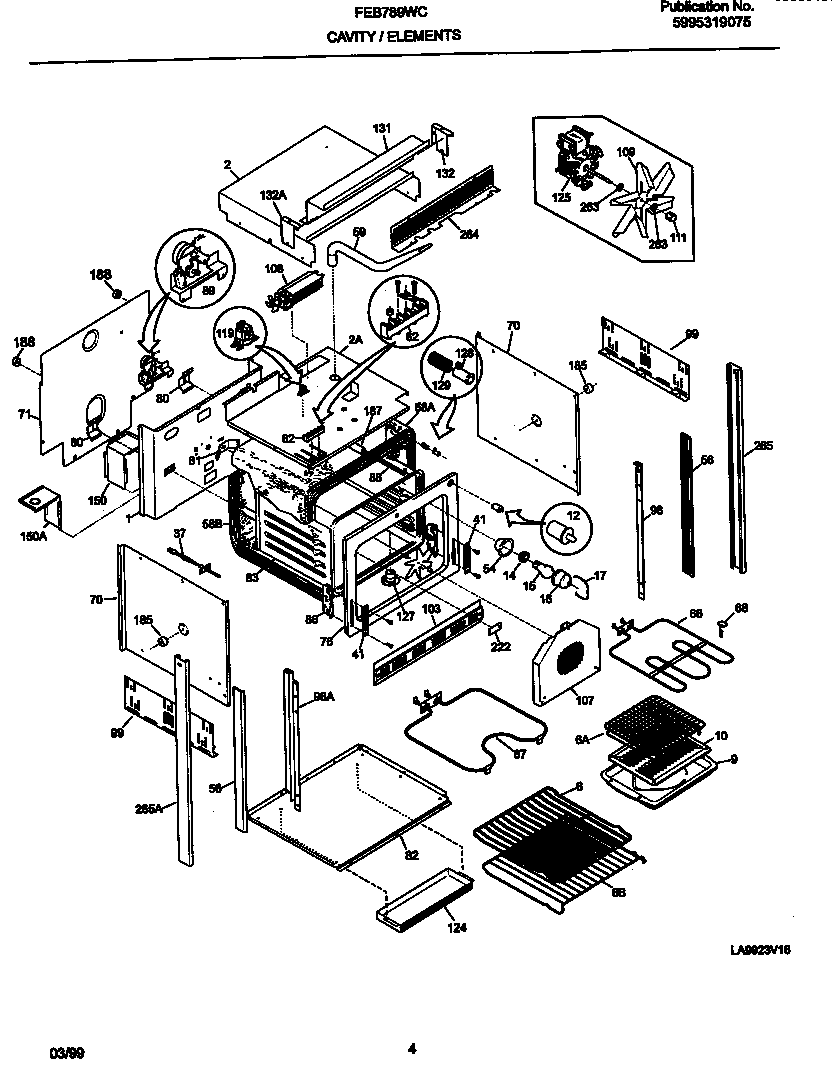

FEB789WCCG 03 – BODY

FEB789WCCG 03 – BODY

Written by

in

FEB789WCCG 03 – BODY

Products

PositionProduct
*538615303300265 Frigidaire Oven Screw
*53854WCI 5303320422
*5385608002868 Frigidaire 0 Screw Assembly
*53855WCI 5303302745
*538585303324184 Frigidaire Wall Oven Range Screw
*53859WCI 318078511
*538625303288565 Frigidaire Screw
*538575303211311 Frigidaire Refrigerator Screw
*538535304464772 Frigidaire Refrigerator Wire Tie
*53860WCI 5304407813
*53865WCI 5303311528
*53863SCREW, 8 X 5/8, SPARK MODULE
*53864WCI 3201881
*53866WCI 318083109
1WCI 318066700
2WCI 318102000
2WCI 318071500
6Shelf,broiler pan
6WCI 318025200
6WCI 318025300
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
28CLIP-WIRE
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318145502
58WCI 5303311219
58WCI 5303311218
59WCI 318072511
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071100
76WCI 318056104
80WCI 5303301261
81WCI 5303320846
82WCI 318071800
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89WCI 318120702
89WCI 5304404899
98WCI 318029801
98WCI 318029800
99WCI 318055420
103WCI 5303316773
103TRIM-BASE,SMALL ,BLACK
107WCI 5303318711
108WCI 318073001
109FAN BLADE
110316008401 Frigidaire Washer P-1
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076902
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102203
132END-COVER, CONTROL HSG, RH
132END-COVER, CONTROL HSG, LH
150BRACKET-SUPPORT, ACCESS COVER, RH
150BRACKET-SUPPORT, ACCESS COVER, LH
185318531800 Frigidaire Oven Spacer
187WCI 318013501
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263WCI 5303320346
264WCI 318143811
265WCI 318029500
265WCI 318029501
