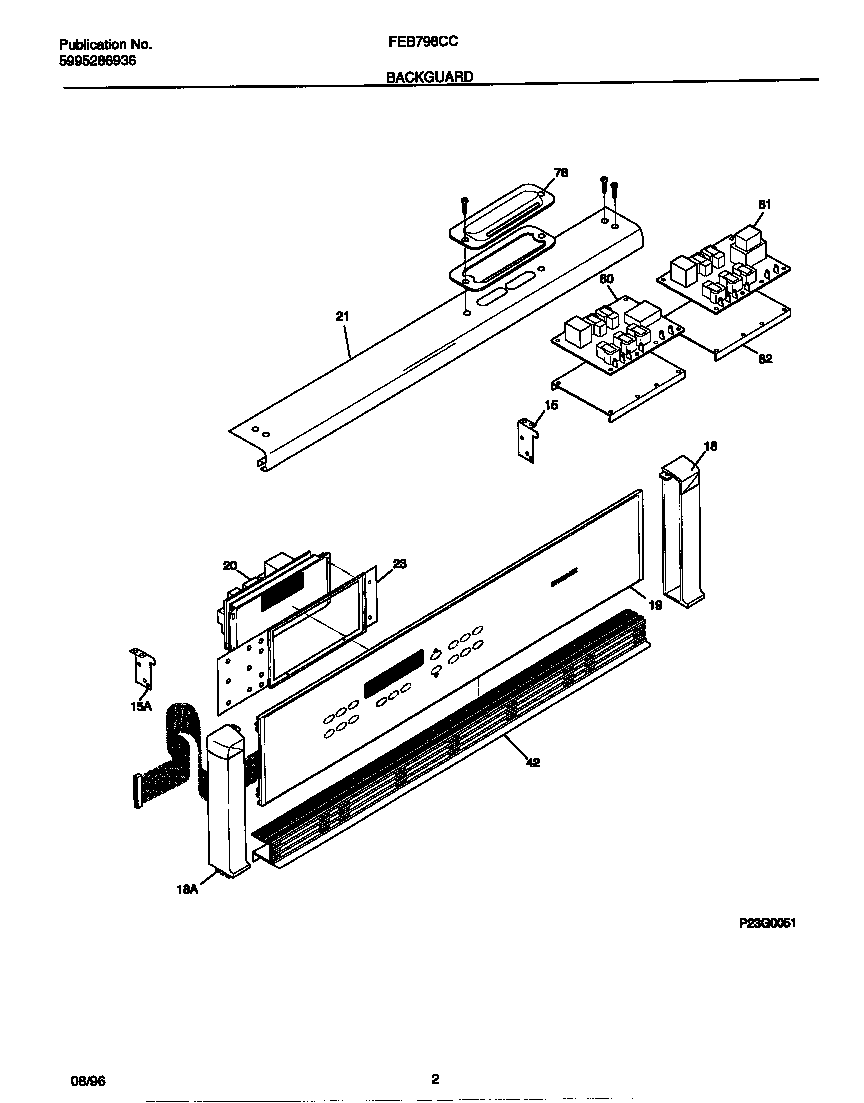

FEB798CCBD 02 – BACKGUARD

FEB798CCBD 02 – BACKGUARD

Written by

in

FEB798CCBD 02 – BACKGUARD

Products

PositionProduct
*47281WCI 5303300414
*47282216858001 Frigidaire Refrigerator Screw
*47283WCI 5303311528
*472805303211311 Frigidaire Refrigerator Screw
15WCI 5303302287
15WCI 5303302286
18WCI 5303311232
18WCI 5303311231
19WCI 318030015
20WCI 318010501
21TRIM-CANOPY/SHIELD, BLACK
21SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
23WCI 318015110
42WCI 5303302298
78COVER, OVEN VENT, BLACK
80318022001 Frigidaire Oven Primary Relay Board
81318022002 Frigidaire Oven Relay Primary Board
82BWCI 5303317199
82AWCI 318023600
