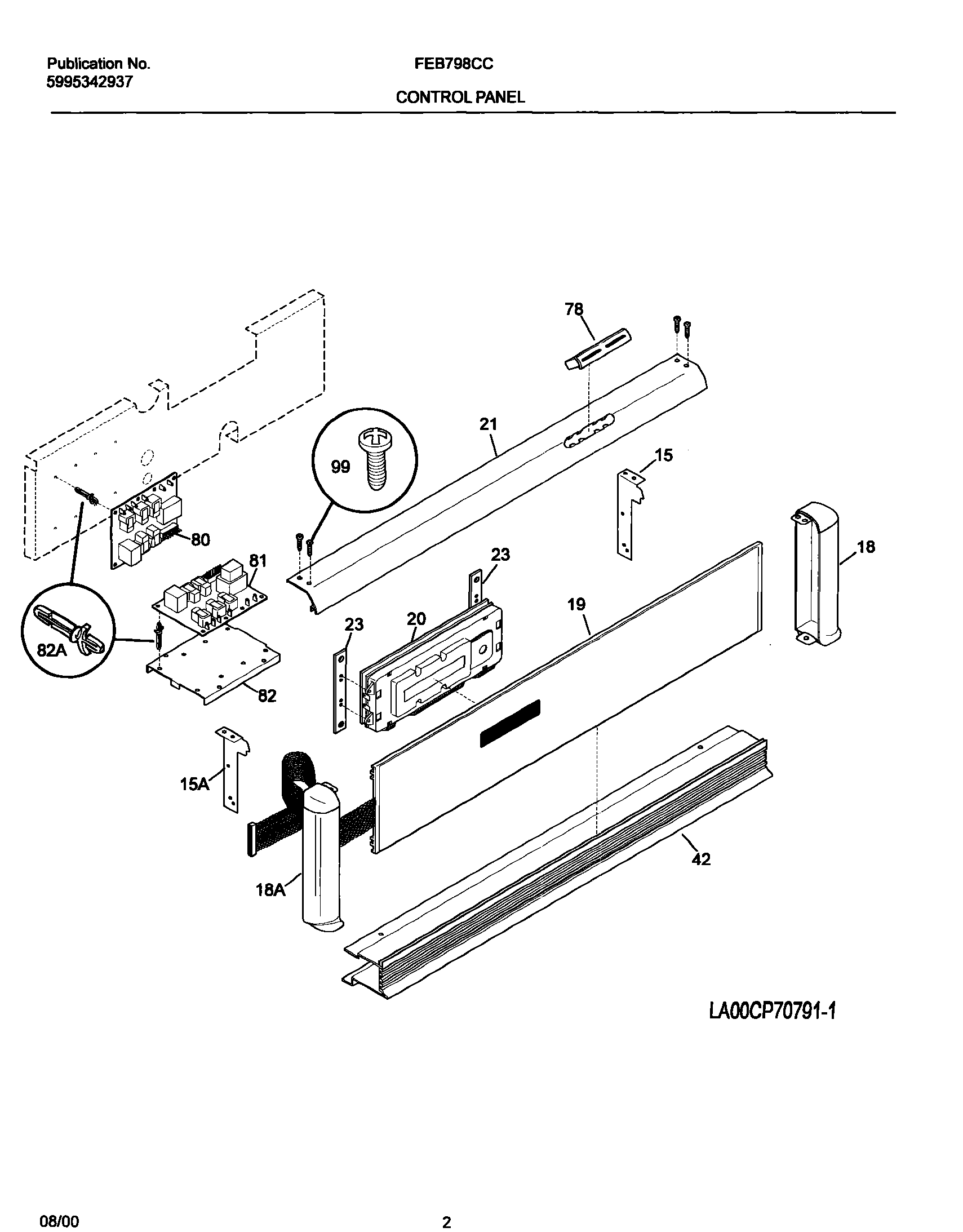

FEB798CCBE 03 – CONTROL PANEL

FEB798CCBE 03 – CONTROL PANEL

Written by

in

FEB798CCBE 03 – CONTROL PANEL

Products

PositionProduct
NI5304480396 Frigidaire Screw
NI5303323130 Frigidaire Oven Screw
NI3201861 Frigidaire Screw
15WCI 5303302286
15AWCI 5303302287
18WCI 5303311231
18AWCI 5303311232
19WCI 318030015
20WCI 318010501
21TRIM-CANOPY/SHIELD, BLACK
23WCI 318015110
42WCI 5303316983
78WCI 318036900
80318022002 Frigidaire Oven Relay Primary Board
81318022001 Frigidaire Oven Primary Relay Board
82AWCI 5303317199
82WCI 318023600
99SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
