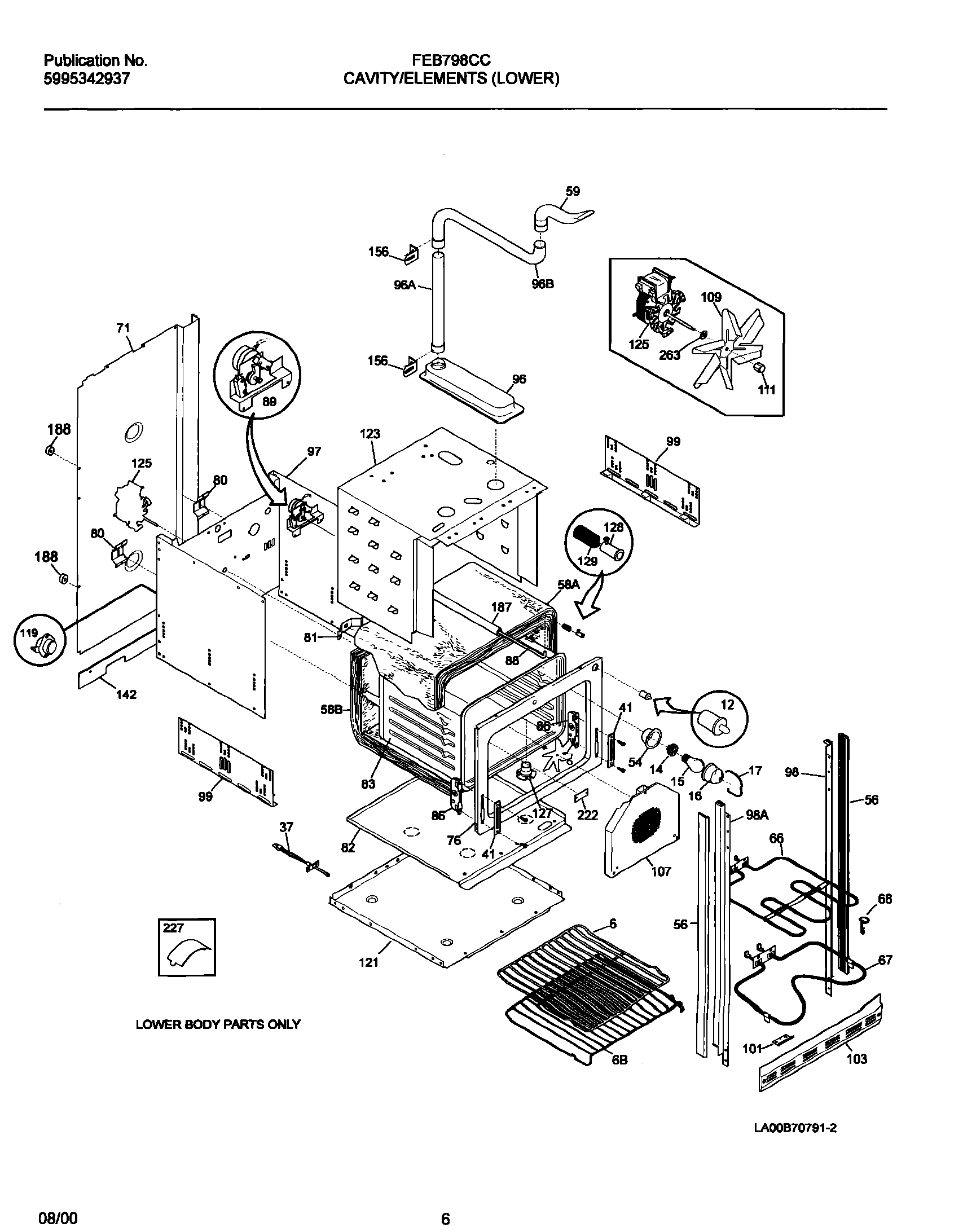

FEB798CCBE 07 – LOWER CAVITY / ELEMENTS

Products

Position	Product
NI	316205500 Frigidaire Oven Nut
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303323139 Frigidaire Oven Screw
NI	08002868 Frigidaire 0 Screw Assembly
NI	WCI 5303311528
NI	WCI 5304407813
NI	5303325980 Frigidaire Oven Screw
NI	WCI 318078501
6B	WCI 318025202
6	WCI 5303299719
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
56	WCI 5303300956
58A	WCI 5303311218
58B	WCI 5303311219
59	WCI 5303300951
66	5303016247 Frigidaire Broil Element
67	318255100 Frigidaire Oven Range Bake Element, 2300W
68	5304403015 Frigidaire Oven Support
71	WCI 318071120
76	WCI 318056104
80	WCI 5303301261
81	WCI 5303320846
82	WCI 5303304699
83	WCI 318089519
86	WCI 5303310524
88	WCI 5303311222
89	318095956 Frigidaire Oven Motor
89	WCI 318120710
96	WCI 5303317197
96B	DUCT-VENT PIPE
96A	Duct,oven vent ,center
97	WCI 318066604
98	WCI 318029332
98A	WCI 318029333
99	318284201 Frigidaire PANEL
101	BRACKET-TRIM (NOT ILLUSTRATED)
103	WCI 318028700
107	WCI 5303318711
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
121	WCI 318145002
123	SHIELD-INSULATION,TOP & SIDES
125	5303311202 Frigidaire P1-Motor-Conv
127	WCI 318072801
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
142	WCI 318054900
156	WCI 5303317198
187	WCI 318013501
188	318531702 Frigidaire Oven Spacer
222	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
227	WCI 5303323955
263	316008401 Frigidaire Washer P-1
