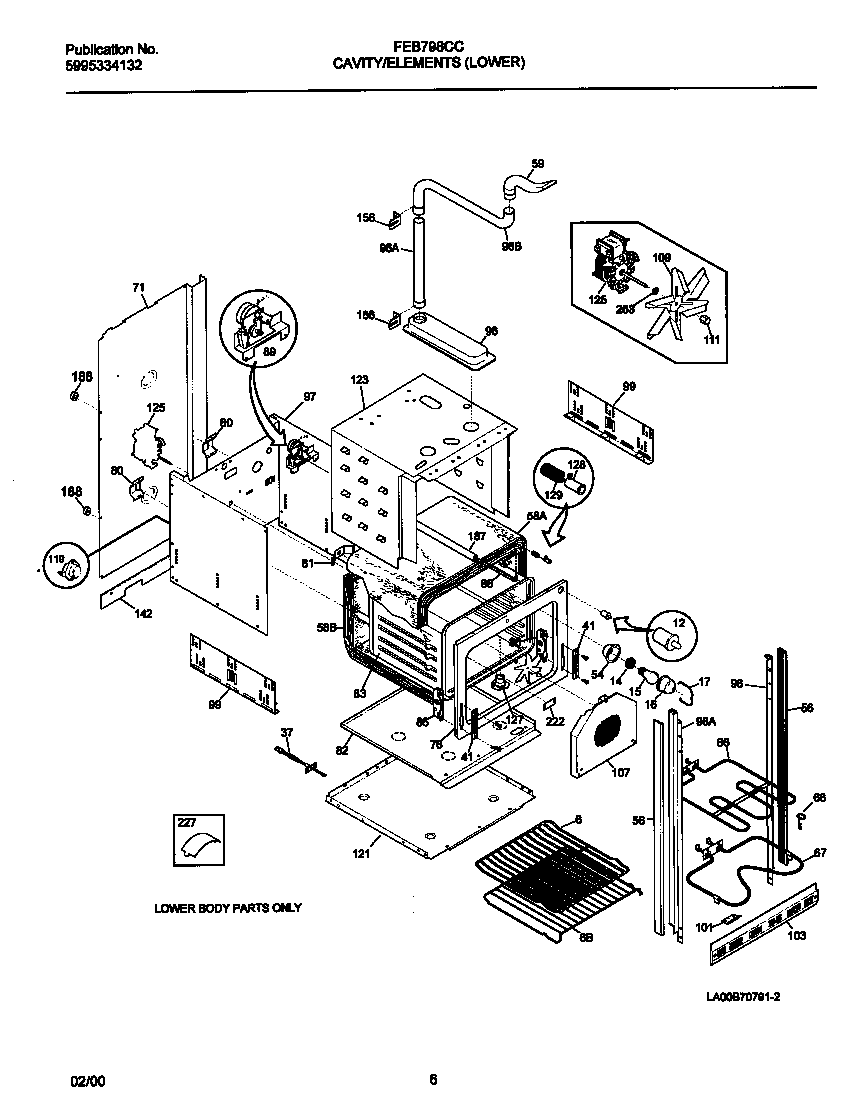

FEB798CCBI 04 – LOWER CAVITY/ELEMENTS

FEB798CCBI 04 – LOWER CAVITY/ELEMENTS

Written by

in

FEB798CCBI 04 – LOWER CAVITY/ELEMENTS

Products

PositionProduct
*70241WCI 318096002
*70222CLIP-WIRE
*702355304480396 Frigidaire Screw
*702375303324184 Frigidaire Wall Oven Range Screw
*702233201861 Frigidaire Screw
*702265303211311 Frigidaire Refrigerator Screw
*702305304464772 Frigidaire Refrigerator Wire Tie
*70239WCI 5304407813
*70234WASHER-OVEN VENT
*702295303304015 Frigidaire Oven Washer
*70233WCI 5303320422
*70228WCI 5303302745
*7022408002868 Frigidaire 0 Screw Assembly
*702365303323277 Frigidaire Oven Screw
*702275303300265 Frigidaire Oven Screw
*70232WCI 5303311528
*70240WCI 318078501
*70231216858001 Frigidaire Refrigerator Screw
*70225WCI 318055200
6WCI 318025202
6WCI 5303299719
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 5303300956
58WCI 5303311219
58WCI 5303311218
59WCI 5303300951
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
71WCI 318071120
76WCI 318056104
80WCI 5303301261
81WCI 5303320846
82WCI 5303304699
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89A318095956 Frigidaire Oven Motor
89BWCI 318120710
96Duct,oven vent ,center
96WCI 318072702
96DUCT-VENT PIPE
97WCI 318066604
98WCI 318029333
98WCI 318029332
99318284201 Frigidaire PANEL
99SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
101BRACKET-TRIM (NOT ILLUSTRATED)
103WCI 318028700
107WCI 5303318711
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
121WCI 318145002
123SHIELD-INSULATION,TOP & SIDES
1255303311202 Frigidaire P1-Motor-Conv
127WCI 318072801
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
142WCI 318054900
156WCI 5303317198
187WCI 318013501
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
227WCI 5303323955
263316008401 Frigidaire Washer P-1
264WCI 318143811
