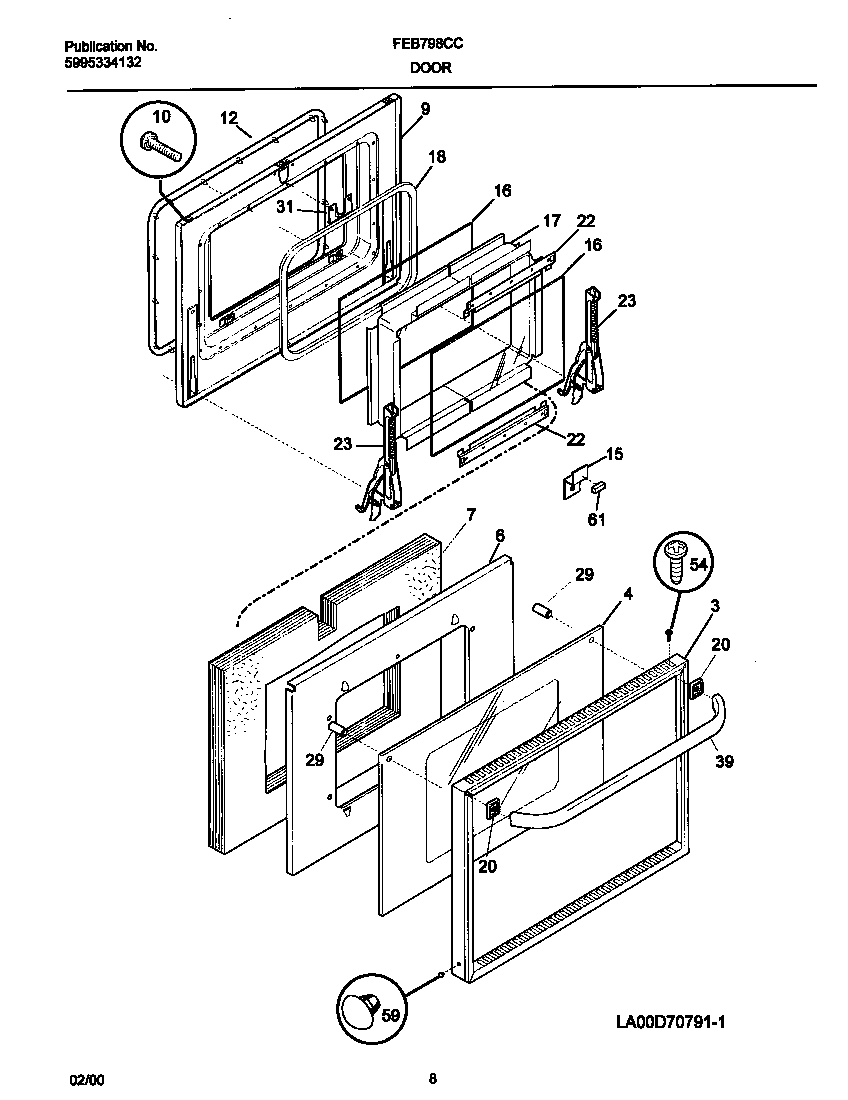

FEB798CCBI 05 – DOOR

FEB798CCBI 05 – DOOR

Written by

in

FEB798CCBI 05 – DOOR

Products

PositionProduct
*702465303300265 Frigidaire Oven Screw
*70257WCI 318078501
*70252WCI 5303320422
*70247WCI 5303302745
*7024308002868 Frigidaire 0 Screw Assembly
*70242CLIP-WIRE
*702545304480396 Frigidaire Screw
*70258WCI 318096002
*702495304464772 Frigidaire Refrigerator Wire Tie
*70251WCI 5303311528
*702455303211311 Frigidaire Refrigerator Screw
*70250216858001 Frigidaire Refrigerator Screw
*70244WCI 318054900
*702485303304015 Frigidaire Oven Washer
*702555303323277 Frigidaire Oven Screw
*70256WCI 5304407813
*70253WASHER-OVEN VENT
1WCI 318071000
2WCI 318070200
3WCI 318070600
3WCI 318070601
6WCI 318025202
6Shelf,broiler pan
6WCI 5303299719
9WCI 5303317977
10B5303323139 Frigidaire Oven Screw
10AWCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17AWIRE, GLASS RETAINER
17BWCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
57WCI 318072100
58WCI 5303311219
58WCI 5303316994
58WCI 5303311218
59WCI 318072510
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
76WCI 318056104
80WCI 5303301261
81WCI 5303320846
82WCI 5303317199
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89318095956 Frigidaire Oven Motor
97WCI 318066500
99WCI 318055200
107WCI 5303318711
108WCI 318073000
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119WCI 318005200
123SHIELD-INSULATION,TOP & SIDES
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
156WCI 318024100
157WCI 318071600
187WCI 318013501
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
264WCI 318143811
