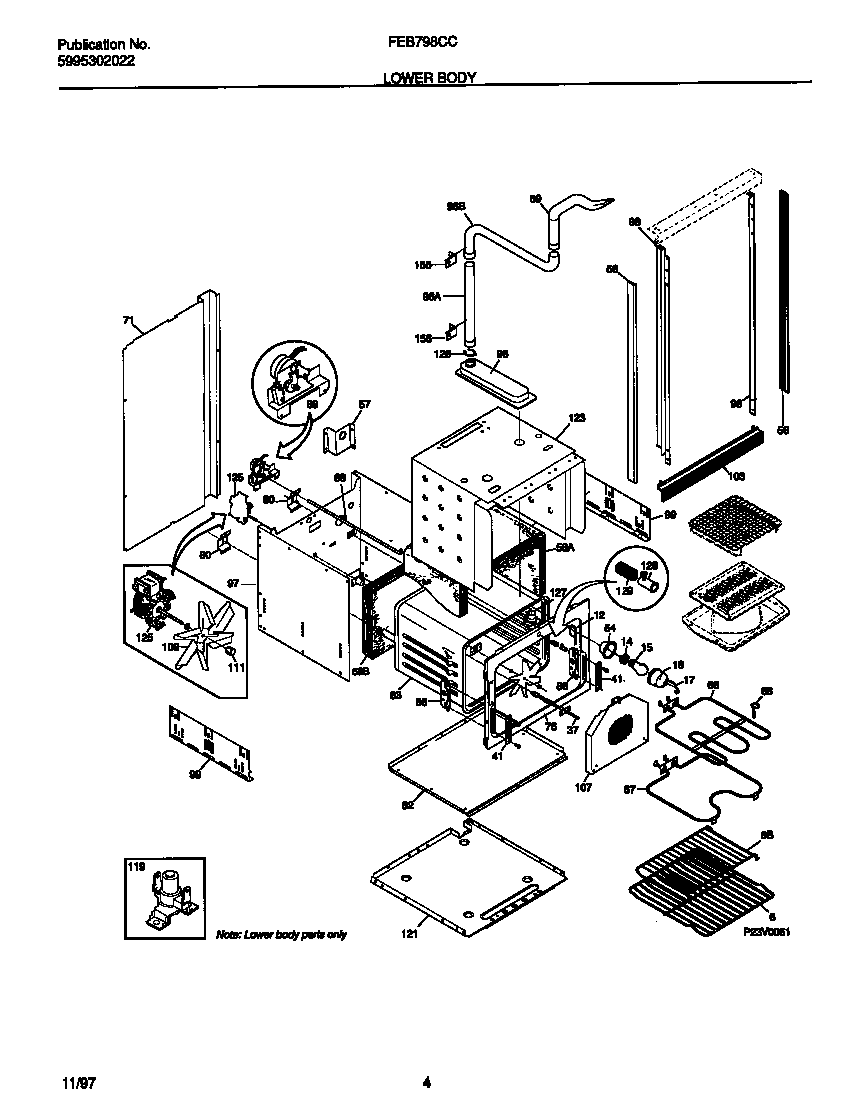

FEB798CCTF 03 – LOWER BODY

FEB798CCTF 03 – LOWER BODY

Written by

in

FEB798CCTF 03 – LOWER BODY

Products

PositionProduct
*8540808002868 Frigidaire 0 Screw Assembly
*85406CLIP-WIRE
*85409WCI 318054900
*854115303211311 Frigidaire Refrigerator Screw
*85413WCI 5303311528
*85415WCI 318078501
*854125303304015 Frigidaire Oven Washer
*854073201861 Frigidaire Screw
*85414WCI 5303320846
*85410WCI 318055200
6WCI 5303299719
6WCI 318025202
12SWITCH – OVEN LIGHT
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
37A316217002 Frigidaire Oven Temperature Probe
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
41WCI 5303310526
54WCI 5303310514
56WCI 5303320422
56WCI 5303317200
57WCI 318072100
58WCI 5303311214
58WCI 5303311218
59BWASHER-OVEN VENT
59AWCI 318072510
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
68WCI 5303307563
71SHIELD-WIRE
76WCI 318056104
76BRACKET-TRIM (ALMOND)
80WCI 5303301261
82WCI 5303304699
83WCI 318089519
86WCI 5303310524
88BWCI 318013501
88AWCI 5303311222
89WCI 5303317196
96WCI 5303317197
96DUCT-VENT PIPE
96Duct,oven vent ,center
97WCI 318066600
98ATRIM-SIDE, INNER, RH
98BTRIM-SIDE, INNER, LH
99318284201 Frigidaire PANEL
103WCI 318028702
107WCI 5303318711
109FAN BLADE
111B316008401 Frigidaire Washer P-1
111A316136600 Frigidaire Oven Range Lock Nut
119WCI 318005200
121WCI 318145002
123WCI 318071400
125A5303311202 Frigidaire P1-Motor-Conv
125BWCI 5303320346
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
156WCI 5303317198
