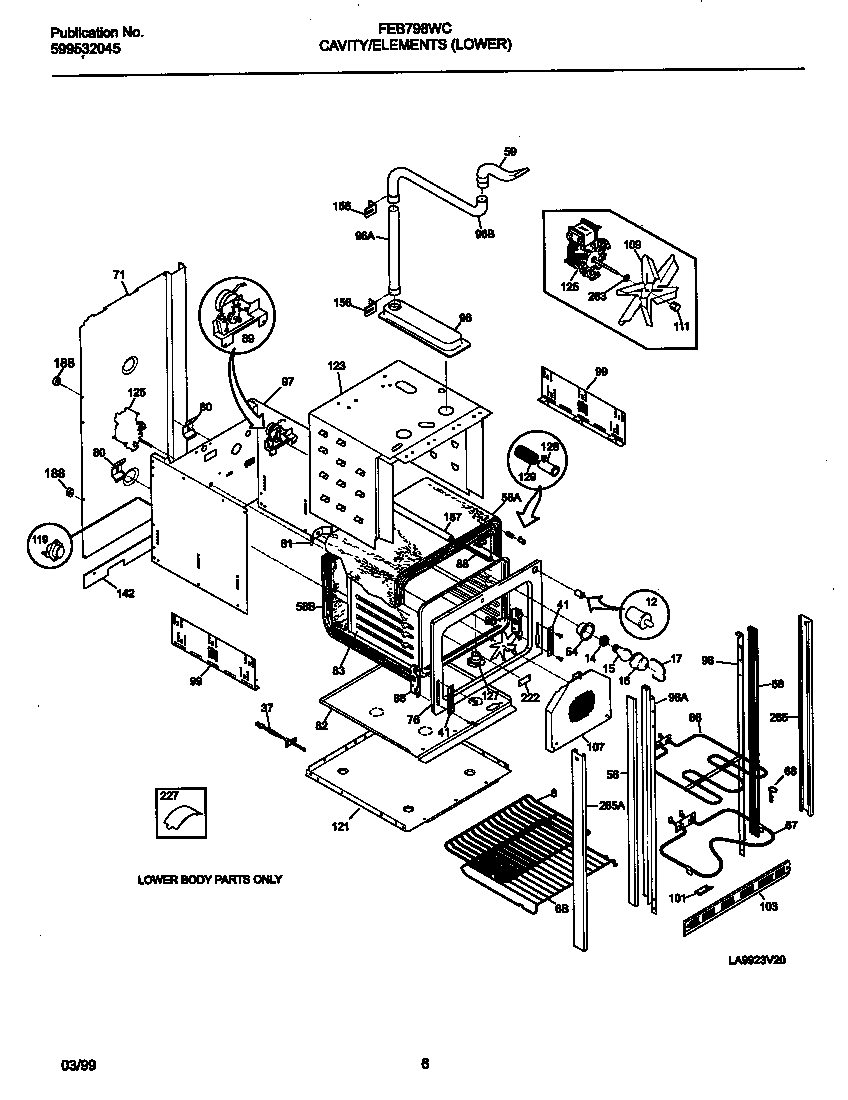

FEB798WCCH 04 – LOWER BODY

FEB798WCCH 04 – LOWER BODY

Written by

in

FEB798WCCH 04 – LOWER BODY

Products

PositionProduct
*30611CLIP-WIRE
*3061308002868 Frigidaire 0 Screw Assembly
*306225303323139 Frigidaire Oven Screw
*306185303304015 Frigidaire Oven Washer
*306215304480396 Frigidaire Screw
*306175303324184 Frigidaire Wall Oven Range Screw
*30609WCI 318120702
*30612WCI 5303302745
*306165303211311 Frigidaire Refrigerator Screw
*30610WCI 318120701
*30623WCI 5304407813
*306205303323277 Frigidaire Oven Screw
*30619WCI 5303311528
*30615WCI 318055200
*30614WCI 318054900
6WCI 318025200
6WCI 318025300
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318145515
57WCI 318072100
58WCI 5303311218
58WCI 5303311219
59WCI 3016331
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
71SHIELD-WIRE
76WCI 318056104
80WCI 5303301261
81WCI 5303320846
82WCI 5303304699
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89WCI 5304409801
96DUCT-VENT PIPE
96WCI 5303317197
96Duct,oven vent ,center
97WCI 318066604
98WCI 318029310
98WCI 318029311
99318284201 Frigidaire PANEL
101WCI 318039501
103WCI 5303316773
107WCI 5303318711
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
121WCI 318145002
123WCI 318071440
1255303311202 Frigidaire P1-Motor-Conv
127WCI 318072801
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
156WCI 5303317198
156WCI 318024100
187WCI 318013501
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
227WCI 5303323955
263316008401 Frigidaire Washer P-1
265WCI 318029502
265WCI 318029503
