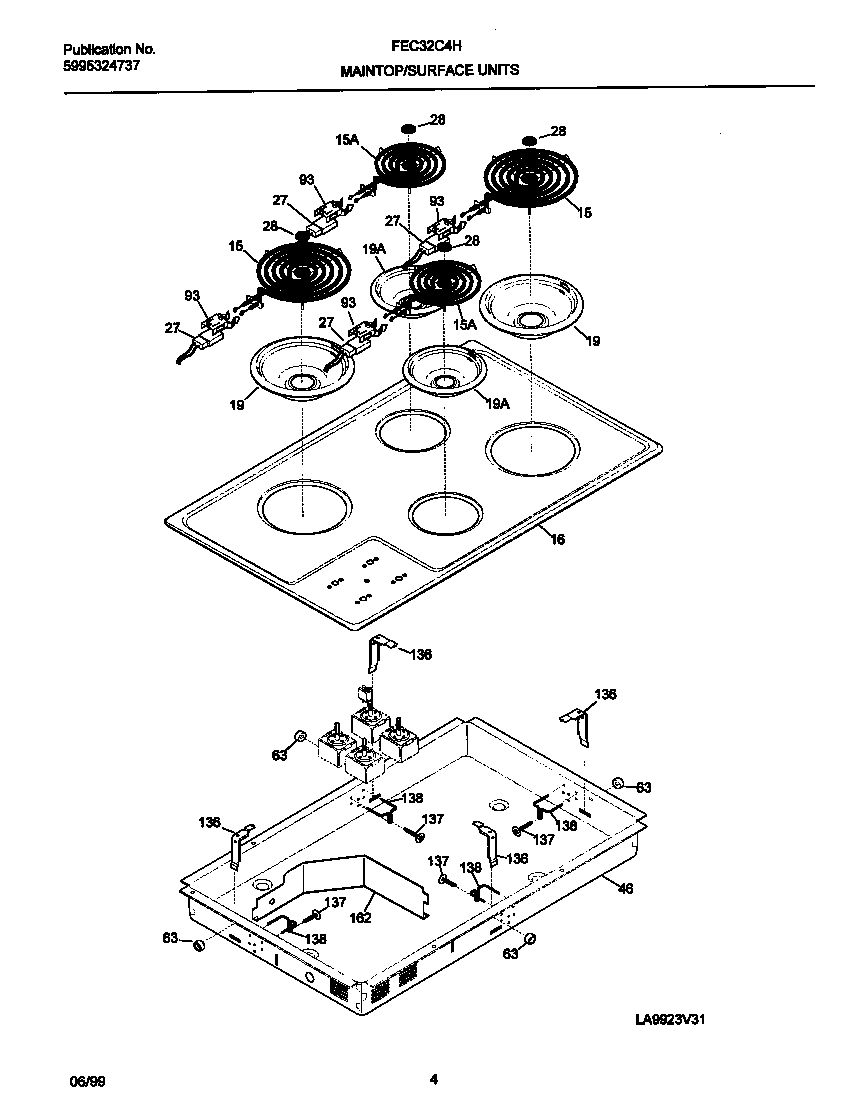

FEC32C4HTA 03 – MAINTOP/ELEMENTS

FEC32C4HTA 03 – MAINTOP/ELEMENTS

Written by

in

FEC32C4HTA 03 – MAINTOP/ELEMENTS

Products

PositionProduct
*39164WCI 5303323364
*3916608002868 Frigidaire 0 Screw Assembly
*391635300803416 Frigidaire Dishwasher Screw
*391655303323140 Frigidaire Oven Screw
*391675303288566 Frigidaire Screw
155308011964 Frigidaire Surface Element P1
15ELEMENT-SURFACE 1250W
16MAI TOP 32“,GRAY
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
27TERMINAL BLOCK, SURFACE ELEMENT
28WCI 5303301461
46WCI 5304410269
63318531702 Frigidaire Oven Spacer
93WCI 318122500
136BRACKET-MTG
137WCI 5303306669
138SUPPORT FIXATION
162WCI 3008713
