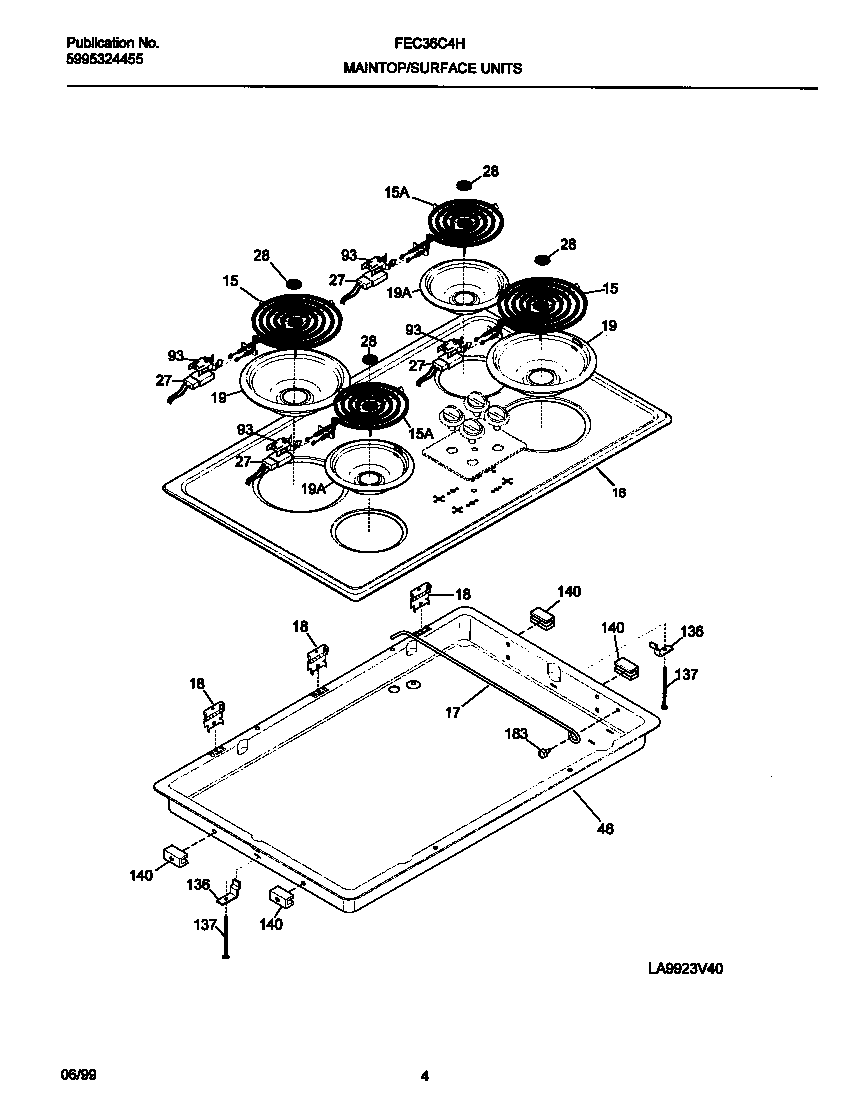

FEC36C4HTA 03 – MAINTOP/ELEMENTS

FEC36C4HTA 03 – MAINTOP/ELEMENTS

Written by

in

FEC36C4HTA 03 – MAINTOP/ELEMENTS

Products

PositionProduct
*77567WCI 5303325982
*77565WCI 5303317085
*77564316524400 Frigidaire Oven Screw
*77562WCI 5303324187
*77563WCI 5303311366
*775665303288566 Frigidaire Screw
15ELEMENT-SURFACE 1250W
155308011964 Frigidaire Surface Element P1
16WCI 318159032
17WCI 3016817
18HINGE MAIN TOP
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
27TERMINAL BLOCK, SURFACE ELEMENT
28WCI 5303301461
46WCI 318077011
93WCI 318122500
136SUPPORT
137WCI 5303323138
140SPACER
183WCI 5304410665
