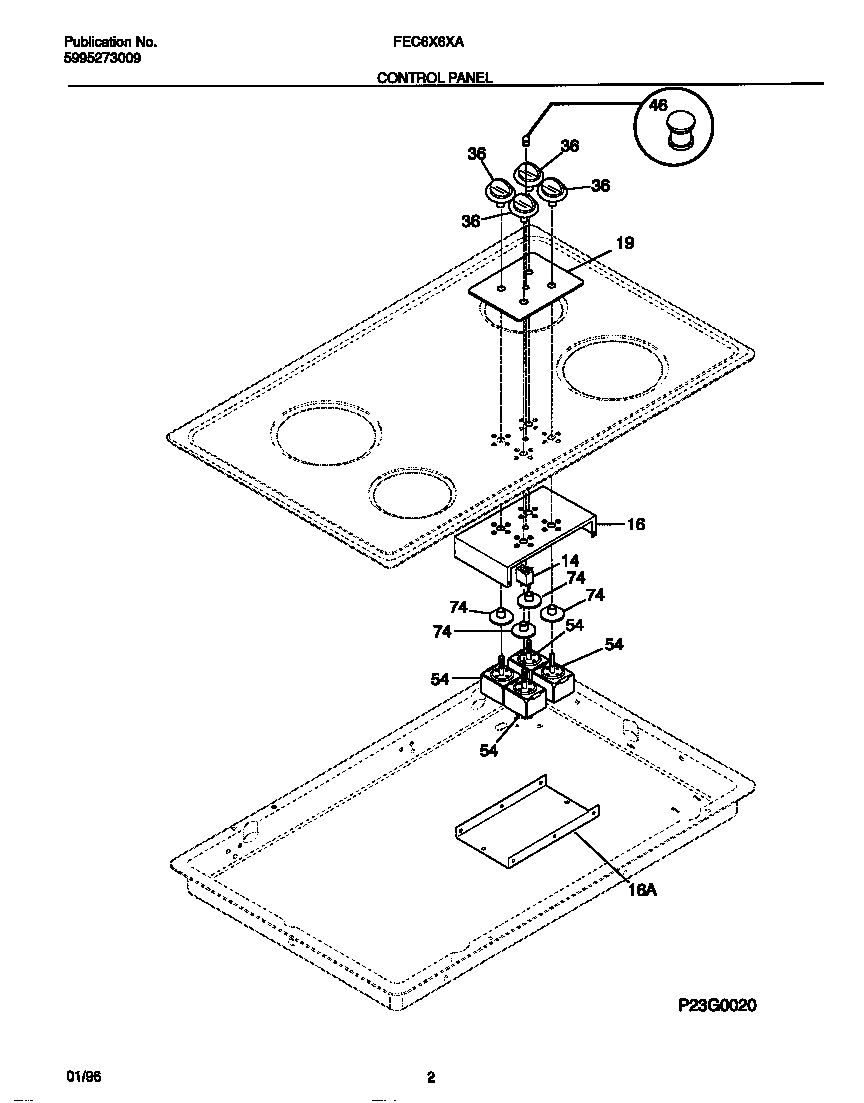

FEC6X6XACD 02 – CONTROL PANEL

FEC6X6XACD 02 – CONTROL PANEL

Written by

in

FEC6X6XACD 02 – CONTROL PANEL

Products

PositionProduct
*70000SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
*70003WCI 5303311366
*700015303013272 Frigidaire Oven Nut
*700025300803416 Frigidaire Dishwasher Screw
*70004316524400 Frigidaire Oven Screw
14INDICATOR LIGHT, OVEN
155308011964 Frigidaire Surface Element P1
15WCI 5303301459
16MAIN TOP, CHROME
16COVER, INSTRUMENT MTG.
16PLATE, INSTRUMENT MTG
17WCI 3016817
18WCI 5303311269
19WCI 5303299755
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
28WCI 5303301461
36Knob,control ,black
46LENS PILOT LIGHT
46WCI 5303299250
545303935086 Frigidaire Oven Top Burner Switch Kit
74WCI 08007822
