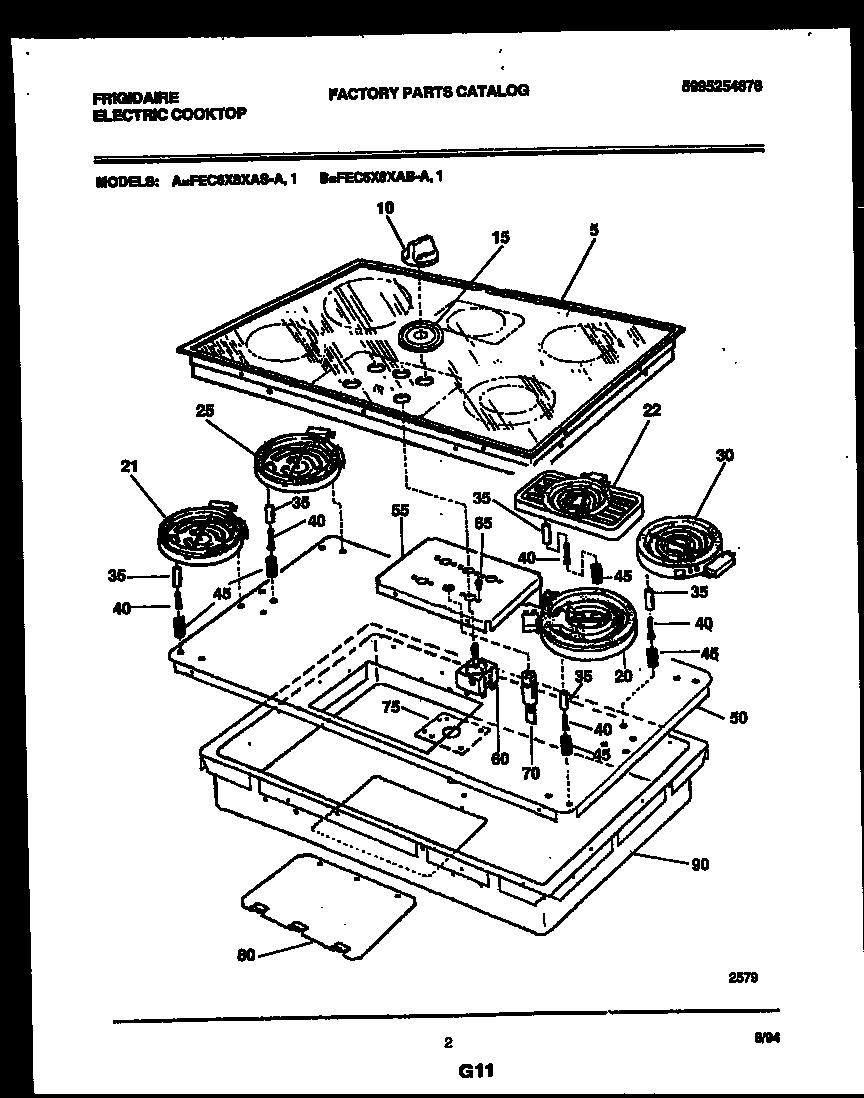

FEC6X8XABA 02 – COOKTOP PARTS

Written by

Products

Position	Product
5	WCI 5303305094
10	KNOB-THERMOSTAT
15	WCI 5303305098
15	WCI 5303305097
20	ELEMENT-SURFACE, 1900 W
21	318178110 Frigidaire Oven Range 6" Surface Element
22	ELEMENT-SURFACE, 1800 W
25	318198834 Frigidaire Oven Element
30	ELEMENT-SURFACE, 1700 W
35	SPACER-ELEMENT
40	SUPPORT-ELEMENT
45	SPRING-ELEMENT MTG
50	SUPPORT-ELEMENT
55	PLATE, INSTRUMENT MTG
60A	5303935086 Frigidaire Oven Top Burner Switch Kit
60	WCI 5303297481
65	WCI 530329005
70	WCI 5303297484
75	PLATE-CONNECTION
80	Panel,Service
90	BURNER BOX
