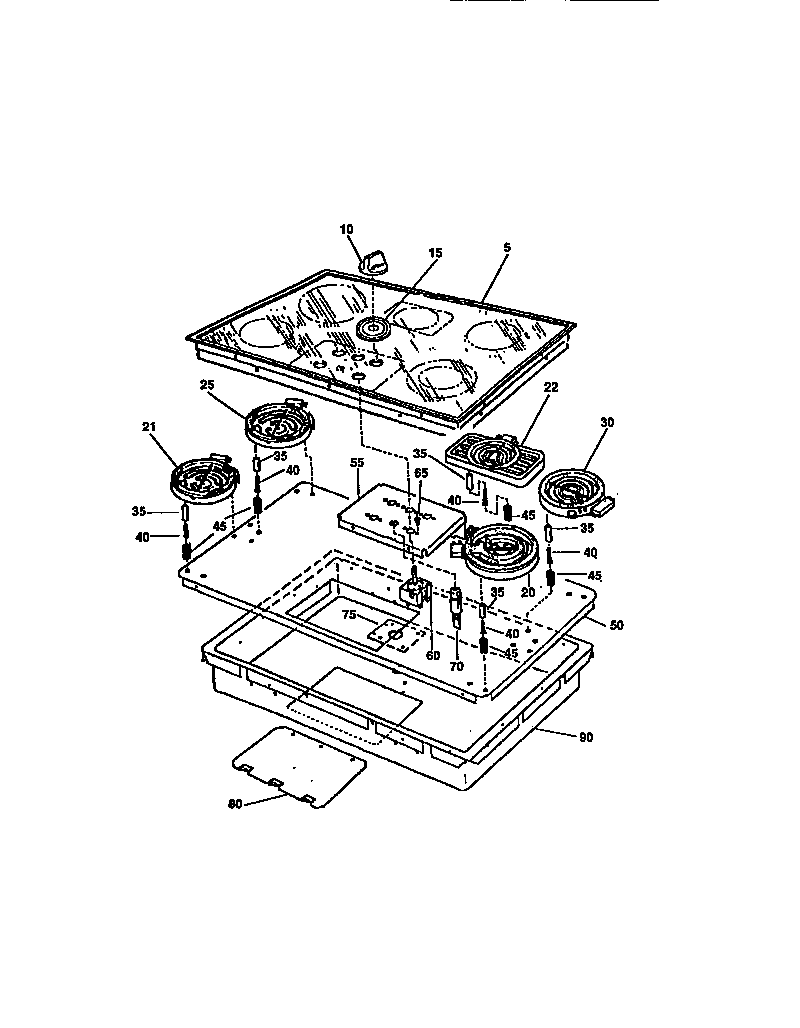

FEC6X8XAS1 02 – CONTROL PANEL, TOP, SWITCHES, SURFA

Products

PositionProduct
5GLASS COOKTOP ASSY
10WCI 5303297391
15WCI 5303305096
15WCI 5303305095
20ELEMENT-SURFACE, 1900 W
21318178110 Frigidaire Oven Range 6" Surface Element
22ELEMENT-SURFACE, 1800 W
25318198834 Frigidaire Oven Element
30ELEMENT-SURFACE, 1700 W
35SPACER-ELEMENT
40SUPPORT-ELEMENT
45SPRING-ELEMENT MTG
50SUPPORT-ELEMENT
55PLATE, INSTRUMENT MTG
60A5303935086 Frigidaire Oven Top Burner Switch Kit
60WCI 5303297481
65WCI 530329005
70WCI 5303297484
75PLATE-CONNECTION
80Panel,Service
90BURNER BOX
