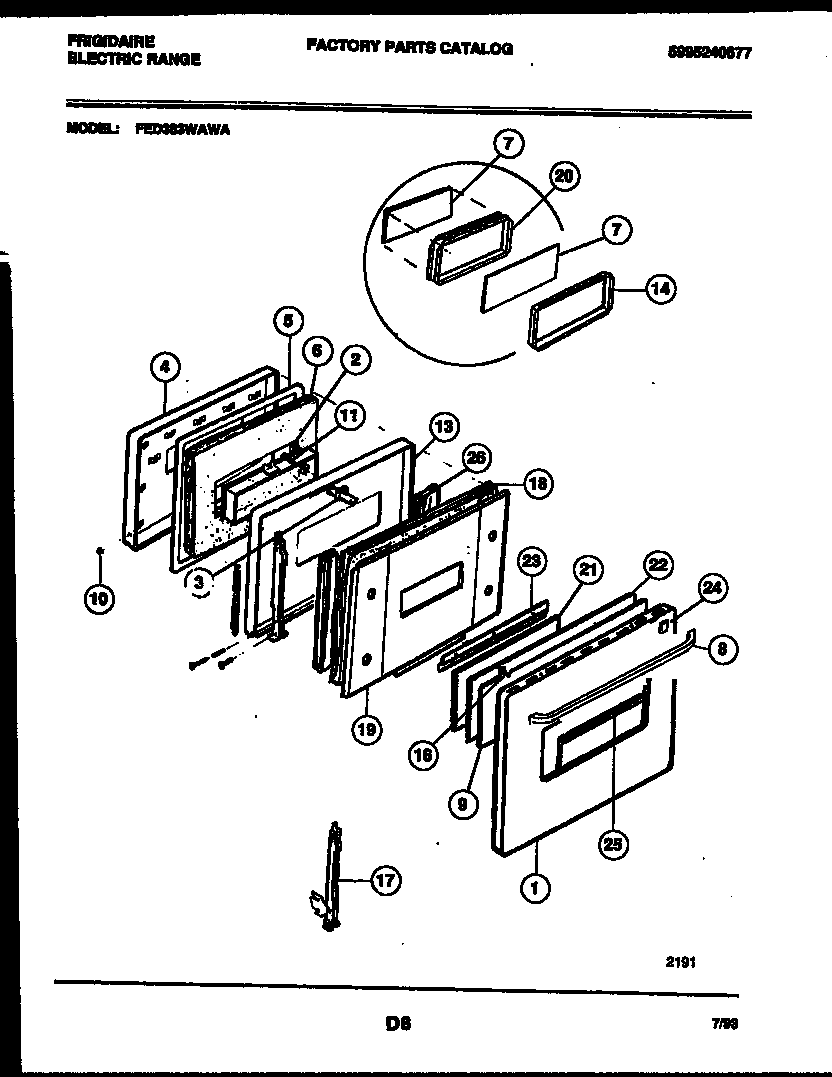

FED353WAW1 04 – DOOR PARTS

Products

Position	Product
1	WCI 5303300367
2	GASKET-GLASS
3	WCI 5301167830
4	BAFFLE-DOOR ASSY
5	SEAL, DOOR
6	WCI 5303269528
7	GLASS-OVEN DOOR, HEAT BARRIER, (2)
8	WCI 5303300169
8	WCI 5303300170
9	WCI 5301318805
10	BUTTON PLUG
11	5300803416 Frigidaire Dishwasher Screw
13	WCI 5303293392
14	WCI 5303269564
16	WCI 5303300172
17	HINGE-ASSEMBLY (2)
18	INSULATION-AIRWASH
19	WCI 5303269570
20	WCI 5303269679
21	WCI 5303269526
22	WCI 5303300234
23	BRACKET-MTG (2)
24	WCI 5303300173
24	SPACER-ALMOND (2)
25	MOULDING OUTER GLASS
26	INSULATION-AIRWASH (2)
