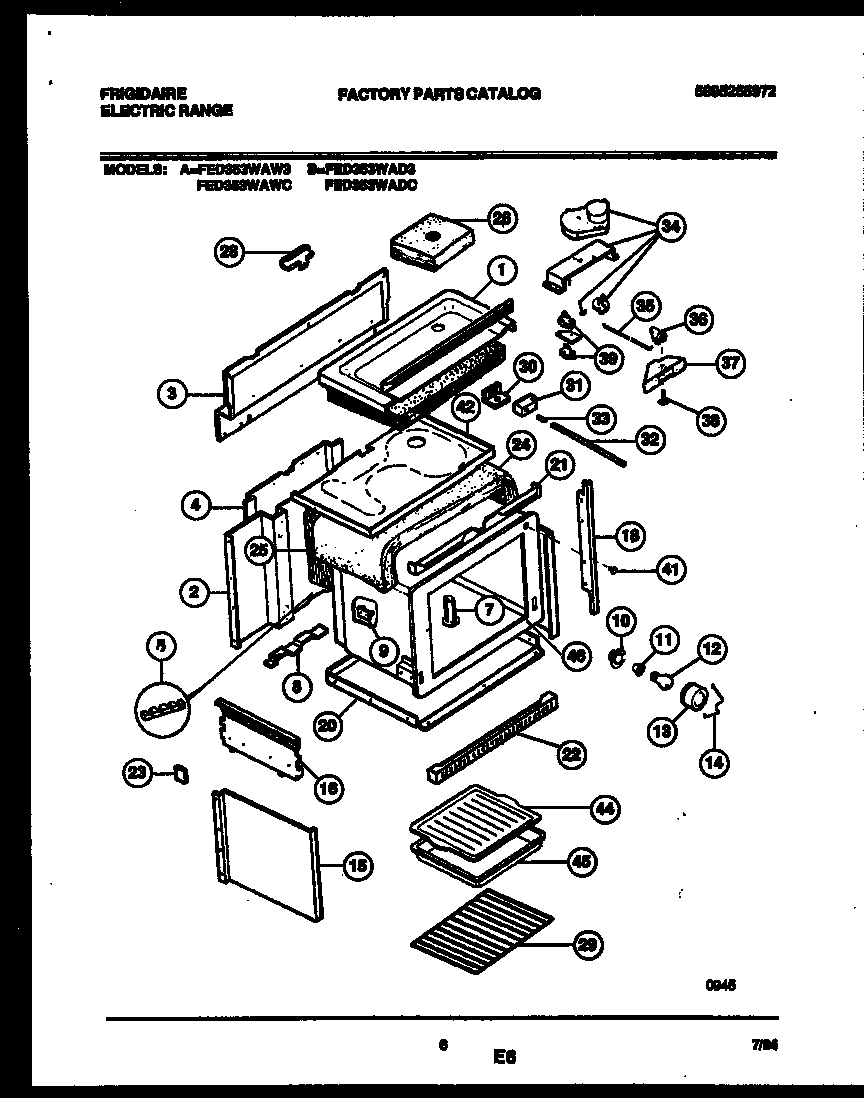

FED353WAW3 05 – BODY PARTS

Products

Position	Product
*10568	WCI 211896-1060
*10568	WCI 316039801
*10568	WCI 3051810
*10568	BUTTON-PLUG
1	WCI 5303293414
2	WCI 5303280344
3	WCI 5303286183
4	WIRE, COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
7	VENT TUBE
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	WCI 5303300142
16	WCI 5303300143
18	WCI 5303300212
20	WCI 5303300211
21	WCI 5303293413
22	TRIM-BASE
23	PLATE-FILLER
25	INSULATION
26	WCI 3008673
28	WCI 5303300148
29	5304531722 Frigidaire Rack
29A	WCI 5303300202
30	BRACKET-DOOR SW
31	SWITCH, DOOR
32	ROD-SWITCH
33	WCI 08007444
34	LATCH, MOTOR
35	WCI 3051649
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE – HINGE (2)
39	WCI 3202114
39	WCI 3202430
41	BUTTON-PLUG
42	WCI 5303300198
44	BROILER GRILL
45	BROILER PAN
46	WCI 5303304726
