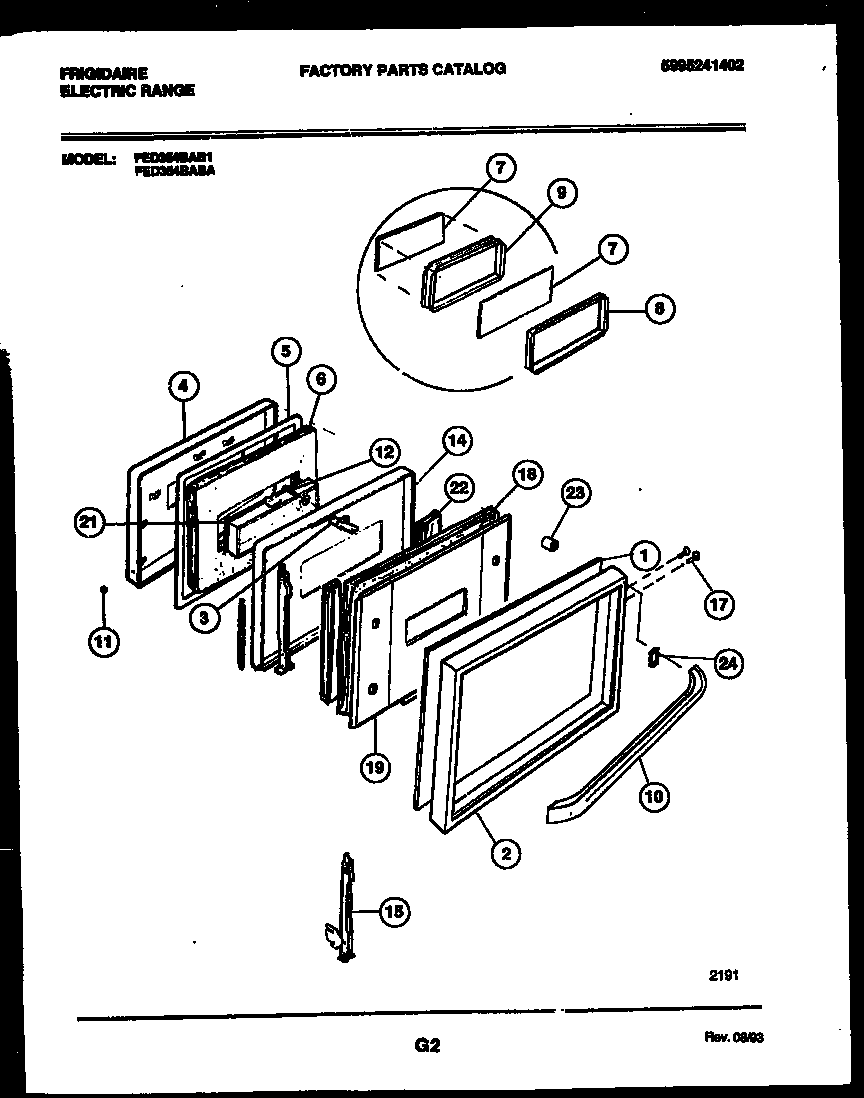

FED354BAB1 04 – DOOR PARTS

FED354BAB1 04 – DOOR PARTS

Written by

in

FED354BAB1 04 – DOOR PARTS

Products

PositionProduct
*80098WCI 5303300414
1GLASS-OUTER
2FRAME-DOOR
3WCI 5301167830
4BAFFLE-DOOR ASSY
5SEAL, DOOR
6WCI 5303269528
7GLASS-OVEN DOOR, HEAT BARRIER, (2)
8WCI 5303269564
9WCI 5303269679
10WCI 5303300171
11BUTTON PLUG
125304500008 Frigidaire Oven Screw
14WCI 5303300196
15HINGE-ASSEMBLY (2)
17WCI 5303299481
18INSULATION-AIRWASH
19WCI 5303300197
21GASKET-GLASS
22INSULATION-AIRWASH (2)
23WCI 5303212865
24WCI 5303300175
