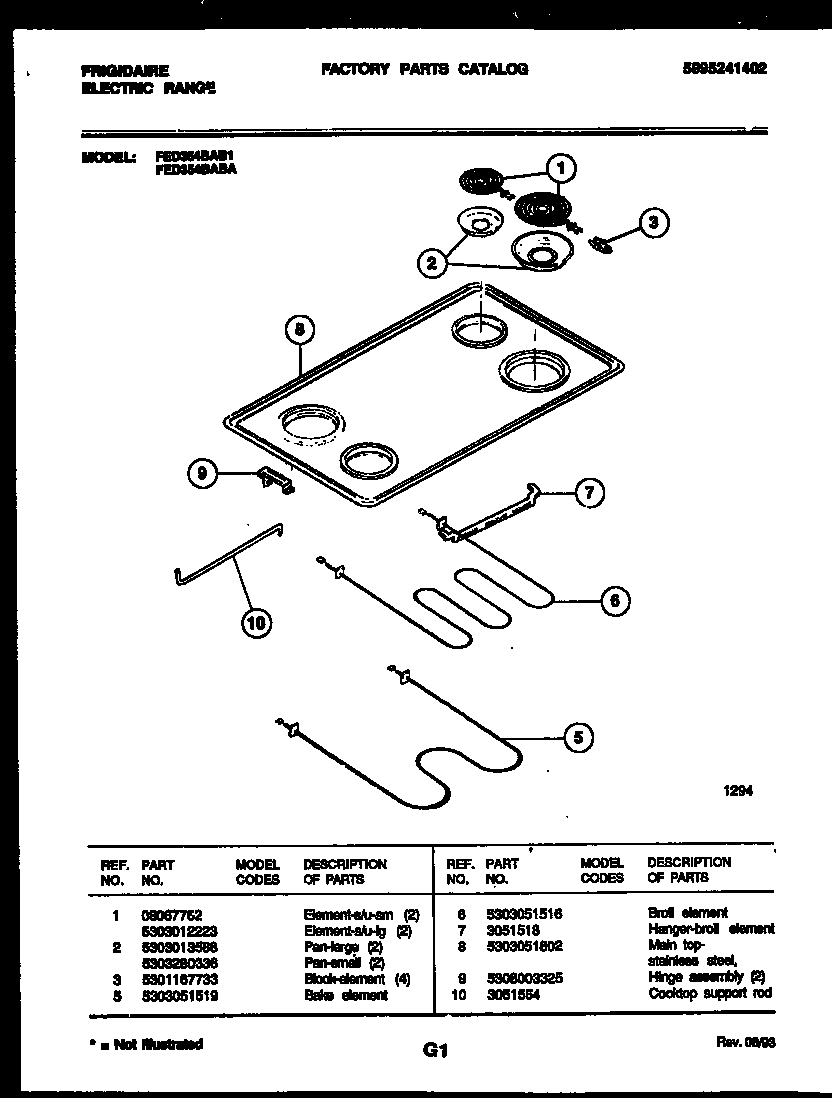

FED354BABA 03 – COOKTOP AND BROILER PARTS

FED354BABA 03 – COOKTOP AND BROILER PARTS

Written by

in

FED354BABA 03 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1A316442301 Frigidaire Oven 8 Coil Element 2600W
1318372211 Frigidaire Oven 6" Electric Range Burner Kit
2316048413 Frigidaire Oven Range Chrome 8" Drip Bow
2A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
35303935058 Frigidaire Oven Burner Receptacle Kit
55303051519 Frigidaire Oven 2600W Bake Element
65303051516 Frigidaire Broil Element
7HANGER – BROIL UNIT
8TOP-CHROME
9HINGE ASSEMBLY (2)
10ROD-TOP SUPPORT
