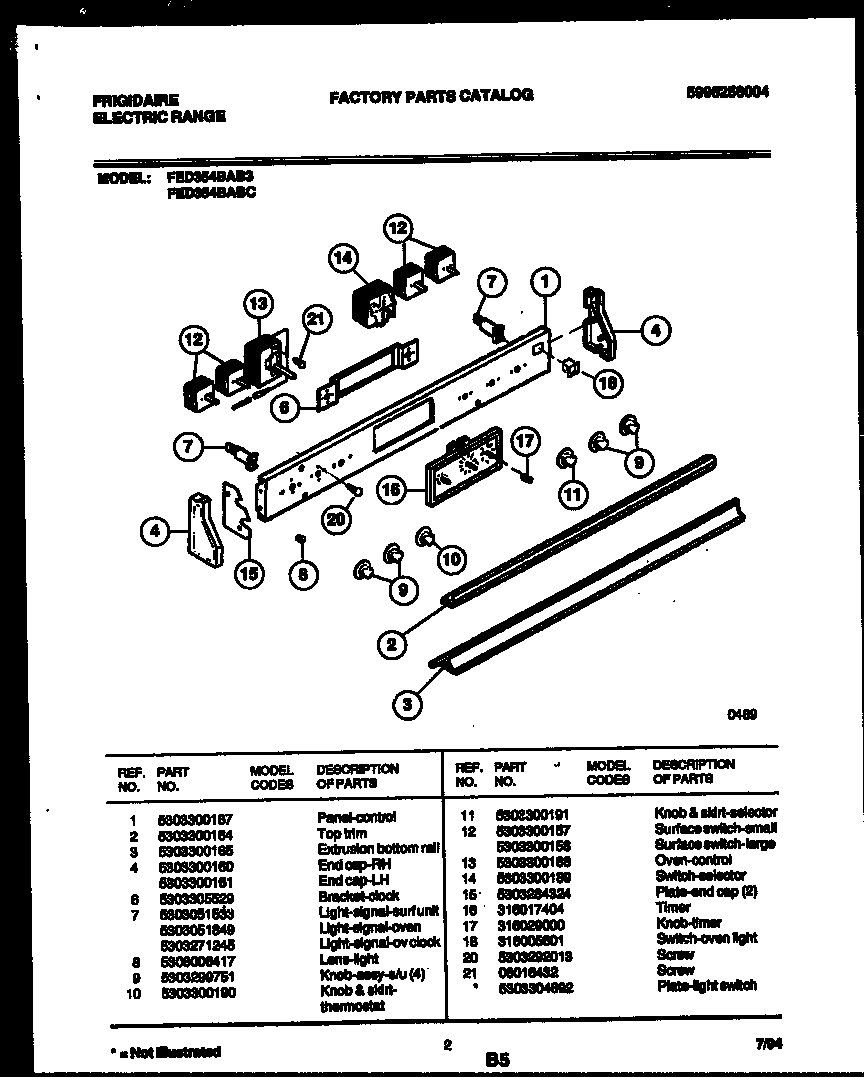

FED354BABC 02 – CONTROL PANEL

FED354BABC 02 – CONTROL PANEL

Written by

in

FED354BABC 02 – CONTROL PANEL

Products

PositionProduct
*10541PLATE, BACKUP, LIGHT SWITCH
1WCI 5303300187
2WCI 5303300164
3WCI 5303300165
4WCI 5303300160
4AWCI 5303300161
6BRACKET-CLOCK MTG
7LIGHT-LAMP/INDICATOR
7ALIGHT-SIGNAL S/U
7BLIGHT-SIGNAL OVEN LOCK
8LENS (2)
9Knob,control ,black
10WCI 5303300190
11WCI 5303300191
125303935086 Frigidaire Oven Top Burner Switch Kit
13WCI 5303300188
14WCI 5303300189
15WCI 5303284324
16WCI 316017404
17WCI 316029000
18WCI 316005601
20WCI 5303292013
21SCREW,TRUSS HEAD,8-18 X 0.375
