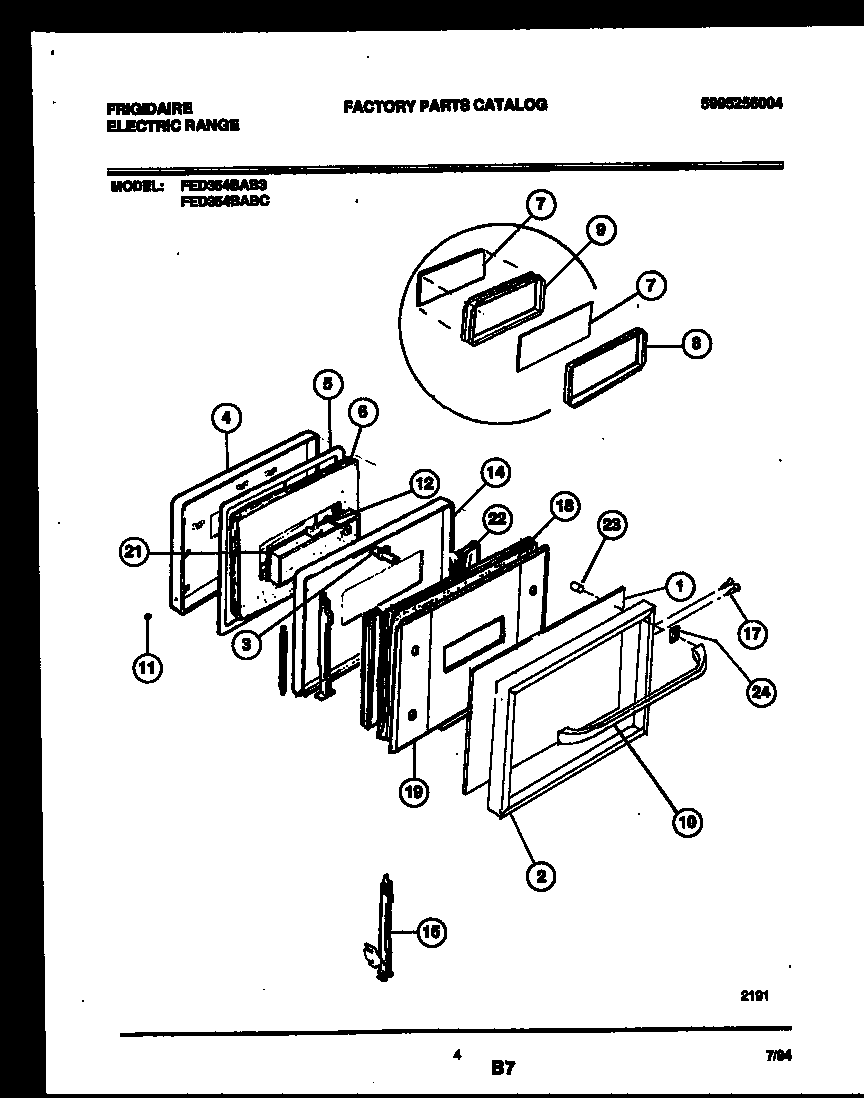

FED354BABC 04 – DOOR PARTS – Aparts

FED354BABC 04 – DOOR PARTS

Products

Position	Product
*10541	WCI 5303300414
1	GLASS-OUTER
2	FRAME-DOOR
3	WCI 5301167830
4	BAFFLE-DOOR ASSY
5	SEAL, DOOR
6	WCI 5303269528
7	GLASS-OVEN DOOR, HEAT BARRIER, (2)
8	WCI 5303269564
9	WCI 5303269679
10	HANDLE-DOOR, BLACK, OVEN
11	BUTTON PLUG
12	5304500008 Frigidaire Oven Screw
14	WCI 5303300196
15	HINGE-ASSEMBLY (2)
17	WCI 5303299481
18	INSULATION-AIRWASH
19	WCI 5303300197
21	GASKET-GLASS
22	INSULATION-AIRWASH (2)
23	WCI 5303212865
24	WCI 5303299479
