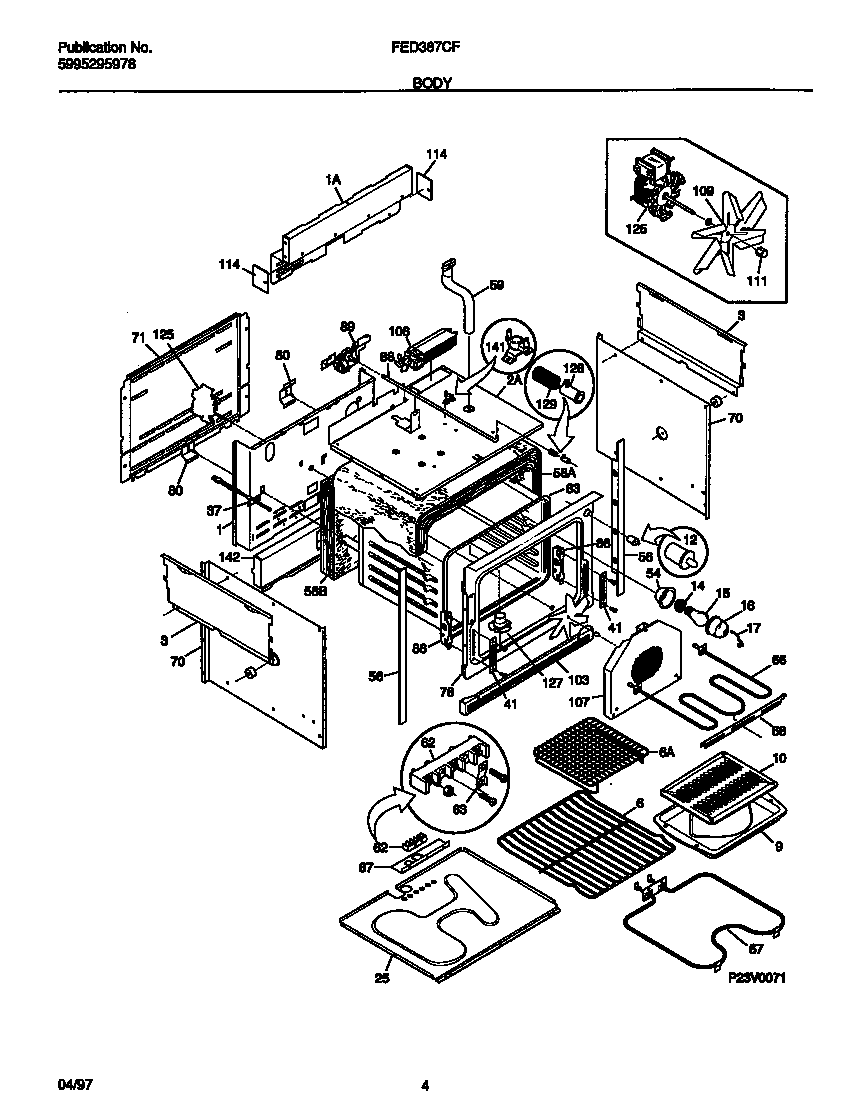

FED387CFBA 03 – BODY

FED387CFBA 03 – BODY

Written by

in

FED387CFBA 03 – BODY

Products

PositionProduct
*66605WCI 318055600
*66612WCI 5303321212
*66610WCI 5303311207
*666075303211311 Frigidaire Refrigerator Screw
*66604SPACER-T.C.O. (NON-ILLUSTRATED)
*66602WCI 3051527
*66603WCI 3051528
*66606316205500 Frigidaire Oven Nut
*666095304464772 Frigidaire Refrigerator Wire Tie
*66613SWITCH, THERMAL CUTOUT
*666085303307980 Frigidaire Oven Screw
*66614WCI 5303311171
*66611WCI 5303320846
1WCI 5303310527
1WCI 318070901
2WCI 5303311158
3WCI 5303300143
6318025314 Frigidaire Oven Rack
6Shelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 5303311141
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37A316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318002701
58WCI 5303310538
58INSULATION WRAPPER
59WCI 318072502
62A5304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
80WCI 5303301261
83WCI 318089603
86AWCI 5303310524
86BCLIP, PLATE CONNECTOR (NOT ILLUSTRATED)
87WCI 318111800
88WCI 5303311160
89318095956 Frigidaire Oven Motor
103WCI 5303300217
107WCI 318119600
108WCI 318073001
109FAN BLADE
111A316136600 Frigidaire Oven Range Lock Nut
111B316008401 Frigidaire Washer P-1
114PLATE-FILLER
1255303311202 Frigidaire P1-Motor-Conv
127BWCI 5303311195
127A318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141Thermostat,safety ,for fan
142WCI 5303310541
