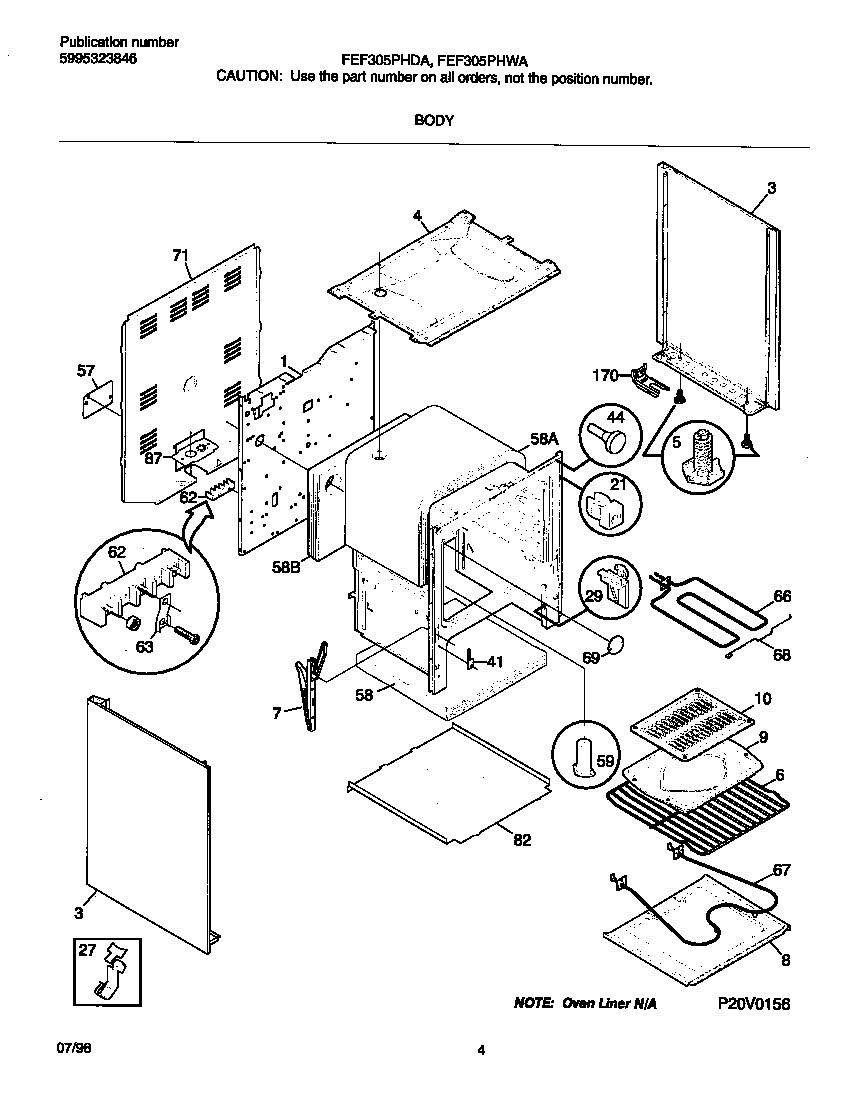

FEF305PHDA 03 – BODY

FEF305PHDA 03 – BODY

Written by

in

FEF305PHDA 03 – BODY

Products

PositionProduct
*88047Screw,cup pt ,8-18 x 0.375 ,chrome
*88045WCI 3051367
*880495303284616 Frigidaire Range Bulb Clip Thermostat
*88051WCI 316001559
*880463203550 Frigidaire Oven Plug
*880505308014215 Frigidaire Oven Screw
*88048316205500 Frigidaire Oven Nut
1WCI 316080804
3BWCI 316081037
3AWCI 316081036
4WCI 5303271756
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007007
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58316403803 Frigidaire Insulation
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
