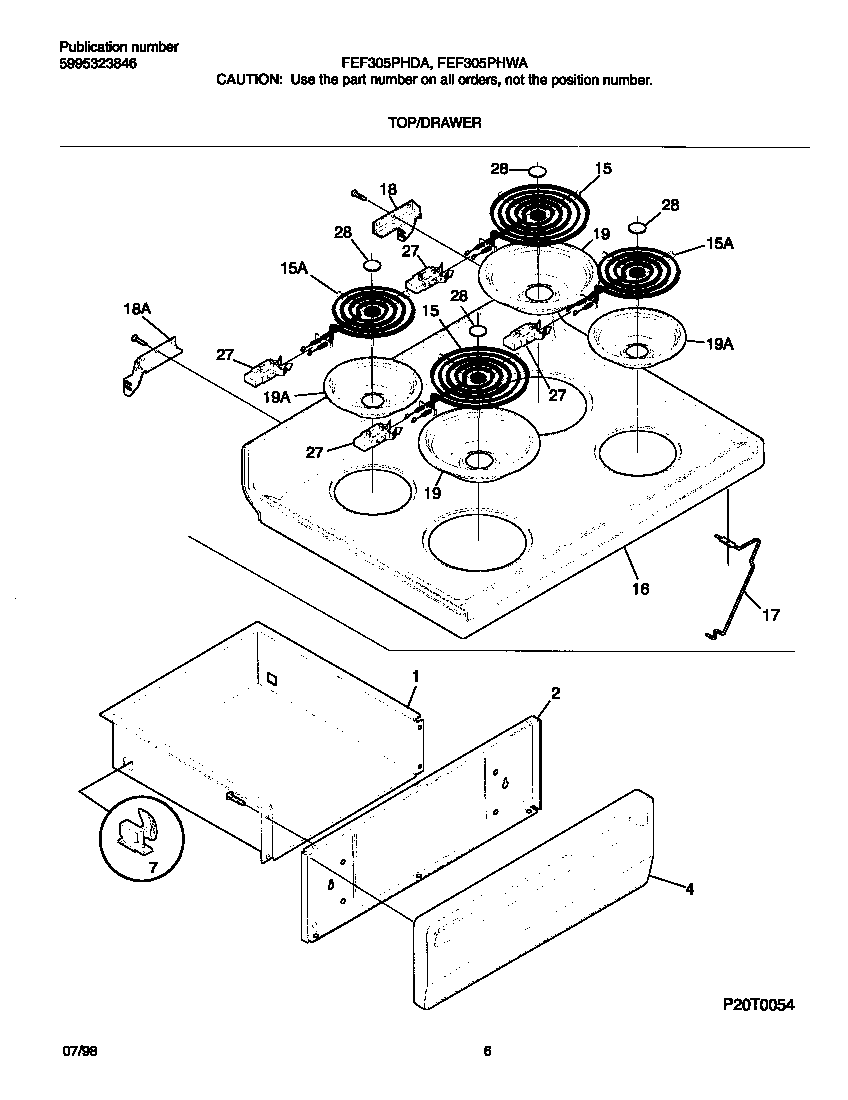

FEF305PHDA 04 – TOP/DRAWER

FEF305PHDA 04 – TOP/DRAWER

Written by

in

FEF305PHDA 04 – TOP/DRAWER

Products

PositionProduct
*88059316580408 Frigidaire Oven Harness
*88056WCI 316089600
*88060SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*88057WCI 5303280311
*880585308014215 Frigidaire Oven Screw
*88052Screw,cup pt ,8-18 x 0.375 ,chrome
*88053316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3013512
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
