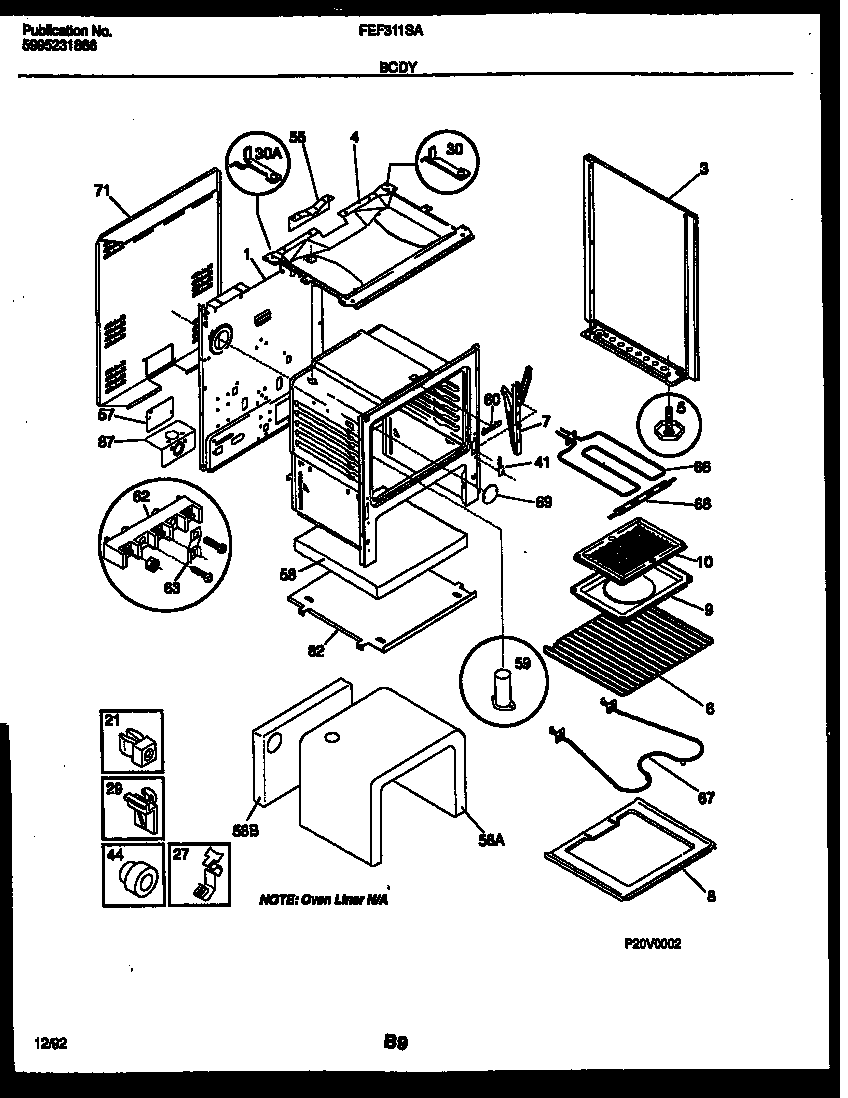

FEF311SADA 03 – BODY PARTSadmin2025-04-26T08:45:35+00:00FEF311SADA 03 – BODY PARTS
Products
| Position | Product |
|---|
| *72434 | 3203550 Frigidaire Oven Plug |
| 1 | BACK-MAIN, AUTOLATCH |
| 3A | WCI 5303269545 |
| 3 | WCI 5303269543 |
| 4 | WCI 5303271756 |
| 5A | ANTI-TIP KIT (NOT ILLUSTRATED) |
| 5B | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5 | SCREW-LEVELING |
| 6 | 316067902 Frigidaire Oven Rack |
| 7 | Hinge,oven door ,(2) |
| 8 | PANEL-OVEN BOTTOM |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 21 | SPACER-BODYSIDE, (8) |
| 27 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 29 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 30A | BRACKET-HINGE, MAIN TOP, LH |
| 30 | BRACKET-HINGE, MAIN TOP RH |
| 41 | WCI 3131570 |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 55 | COVER-FLUE |
| 57 | COVER-ACCESS |
| 58 | 316403803 Frigidaire Insulation |
| 58B | INSUL - OVEN BACK (NON-ILLUSTRATED) |
| 58A | INSULATION, OVEN WRAPPER |
| 59 | WCI 5303283907 |
| 60 | COVER-OVEN FRONT |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 62A | 316205500 Frigidaire Oven Nut |
| 63 | PLATE-GROUND STRAP |
| 66 | 5303051140 Frigidaire Broil Element |
| 67 | 316075103 Frigidaire Oven Bake Element |
| 68 | 316203400 Frigidaire Oven Support |
| 69 | 3051218 Frigidaire Oven Plate |
| 71A | WCI 08067961 |
| 71 | SHIELD-REAR WALL, LOWER |
| 82 | SHIELD, OVEN BOTTOM |
| 87 | WCI 5303206618 |
