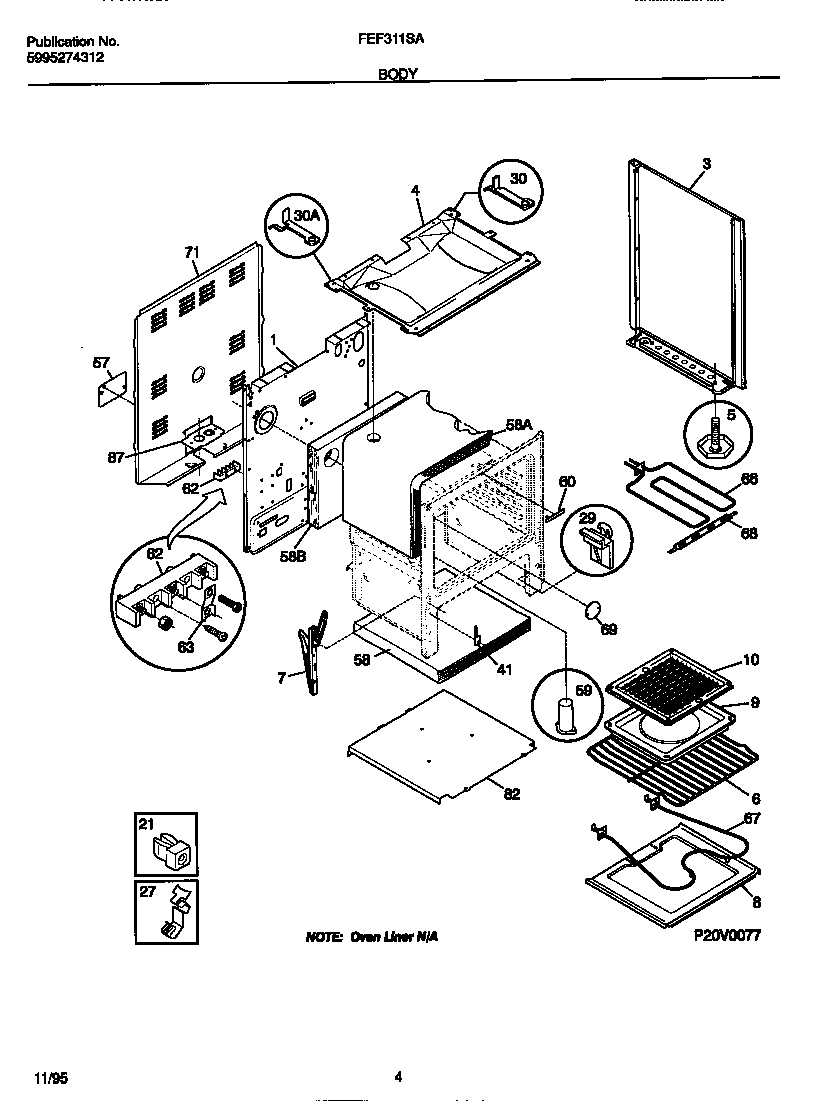

FEF311SAWD 03 – BODY

FEF311SAWD 03 – BODY

Written by

in

FEF311SAWD 03 – BODY

Products

PositionProduct
*43209131243700 Frigidaire Screw
*43208WCI 5303281584
*43206WCI 316001188
*43210WCI 5303288574
*432033203550 Frigidaire Oven Plug
*43204316205500 Frigidaire Oven Nut
*43207WCI 316001725
1DRAWER-UTILITY
1WCI 316080801
2SHIELD-PNL
3WCI 316081005
3WCI 316081004
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 5303271756
4PANEL-BROILER, WHITE
5BWCI 3934058
5C316116000 Frigidaire Screw
5ASCREW-LEVELING
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
155308011964 Frigidaire Surface Element P1
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
21SPACER-BODYSIDE, (8)
275303935058 Frigidaire Oven Burner Receptacle Kit
275303284616 Frigidaire Range Bulb Clip Thermostat
285303017715 Frigidaire Medallion
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
39WCI 316026100
41WCI 3131570
57WCI 316081101
58316403803 Frigidaire Insulation
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316073601
60WCI 5303281379
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
