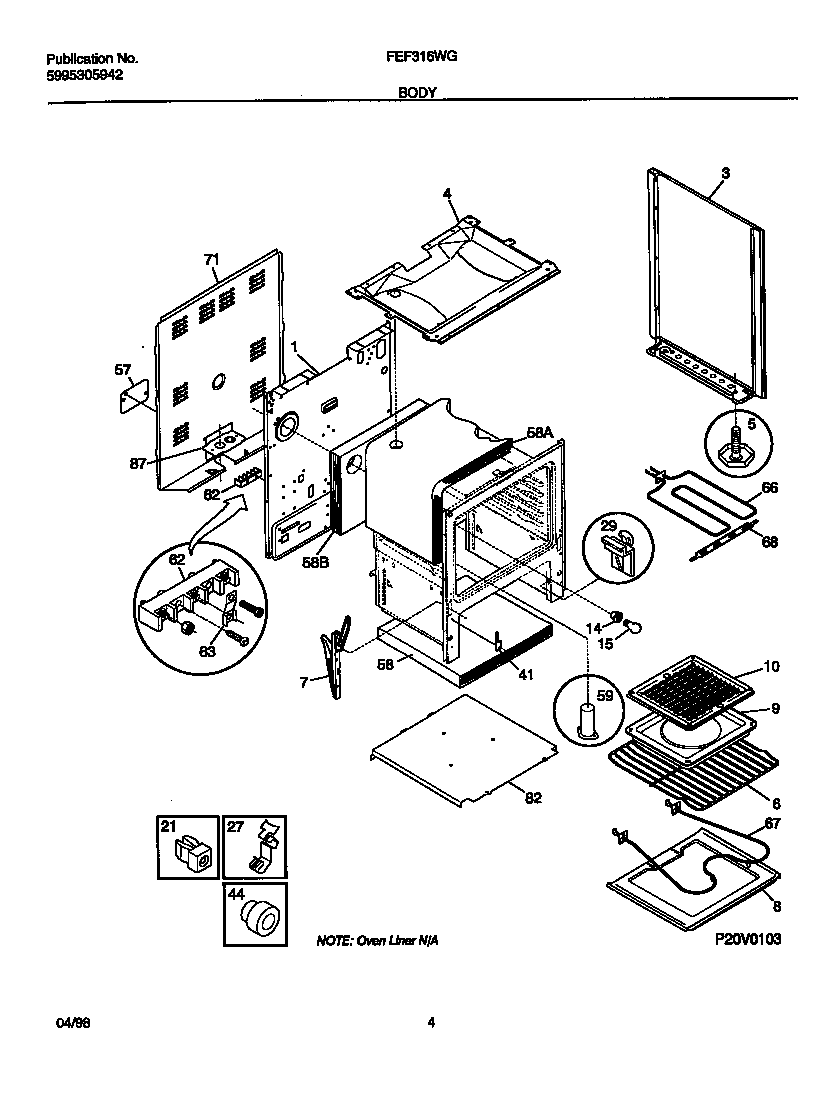

FEF316WGTA 03 – BODY

FEF316WGTA 03 – BODY

Written by

in

FEF316WGTA 03 – BODY

Products

PositionProduct
*61533316021105 Frigidaire Oven Screw
*61526PANEL-BODYSIDE,ALMOND ,LH
*61528316116000 Frigidaire Screw
*61527WCI 3934058
*61531WCI 3051367
*61529NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*61530WCI 08067961
*61535316205500 Frigidaire Oven Nut
*615323203550 Frigidaire Oven Plug
*61534Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080801
3WCI 316081030
4WCI 5303271756
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
58316047707 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
